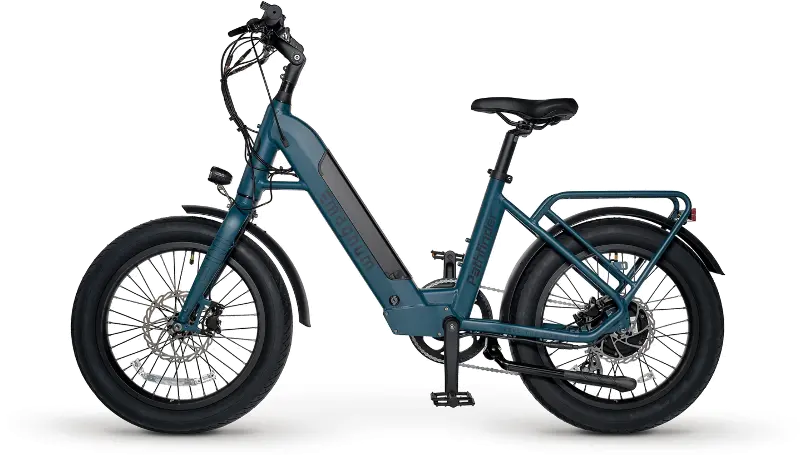

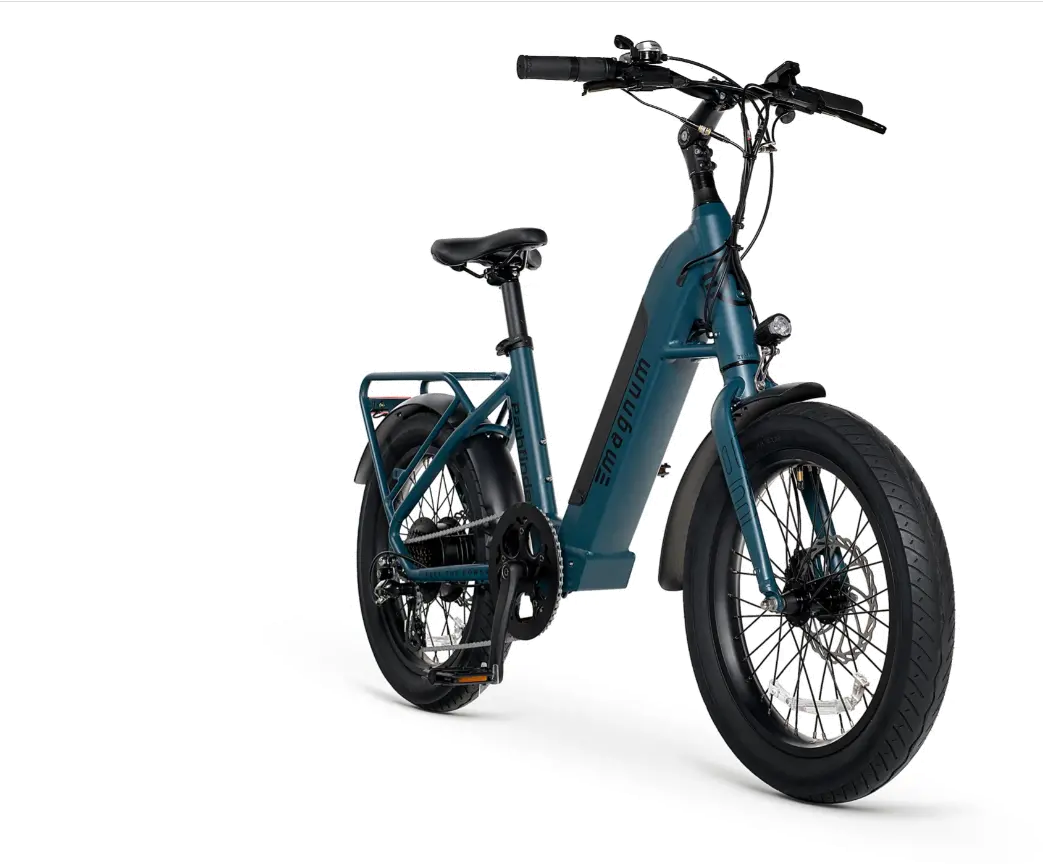

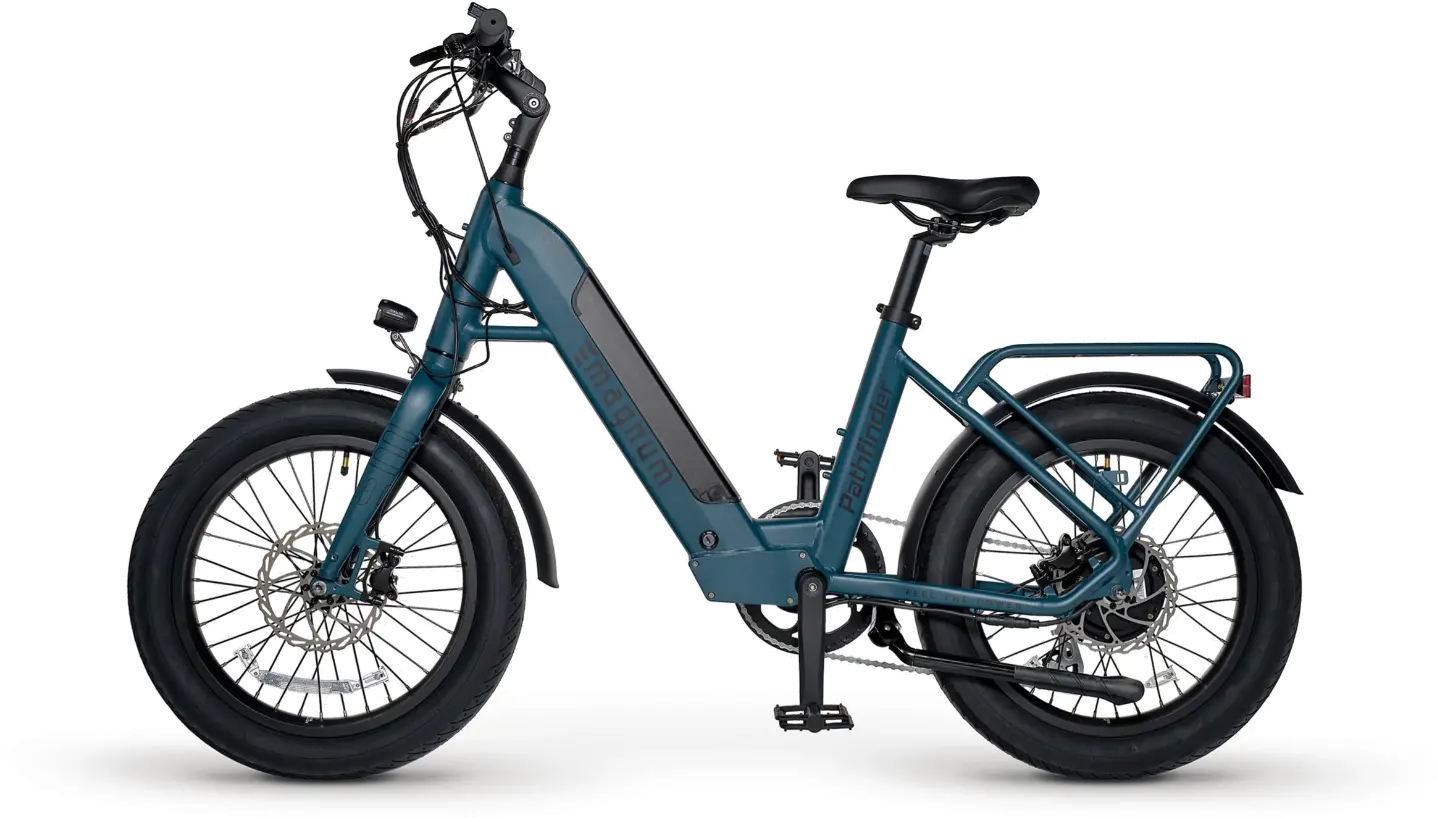

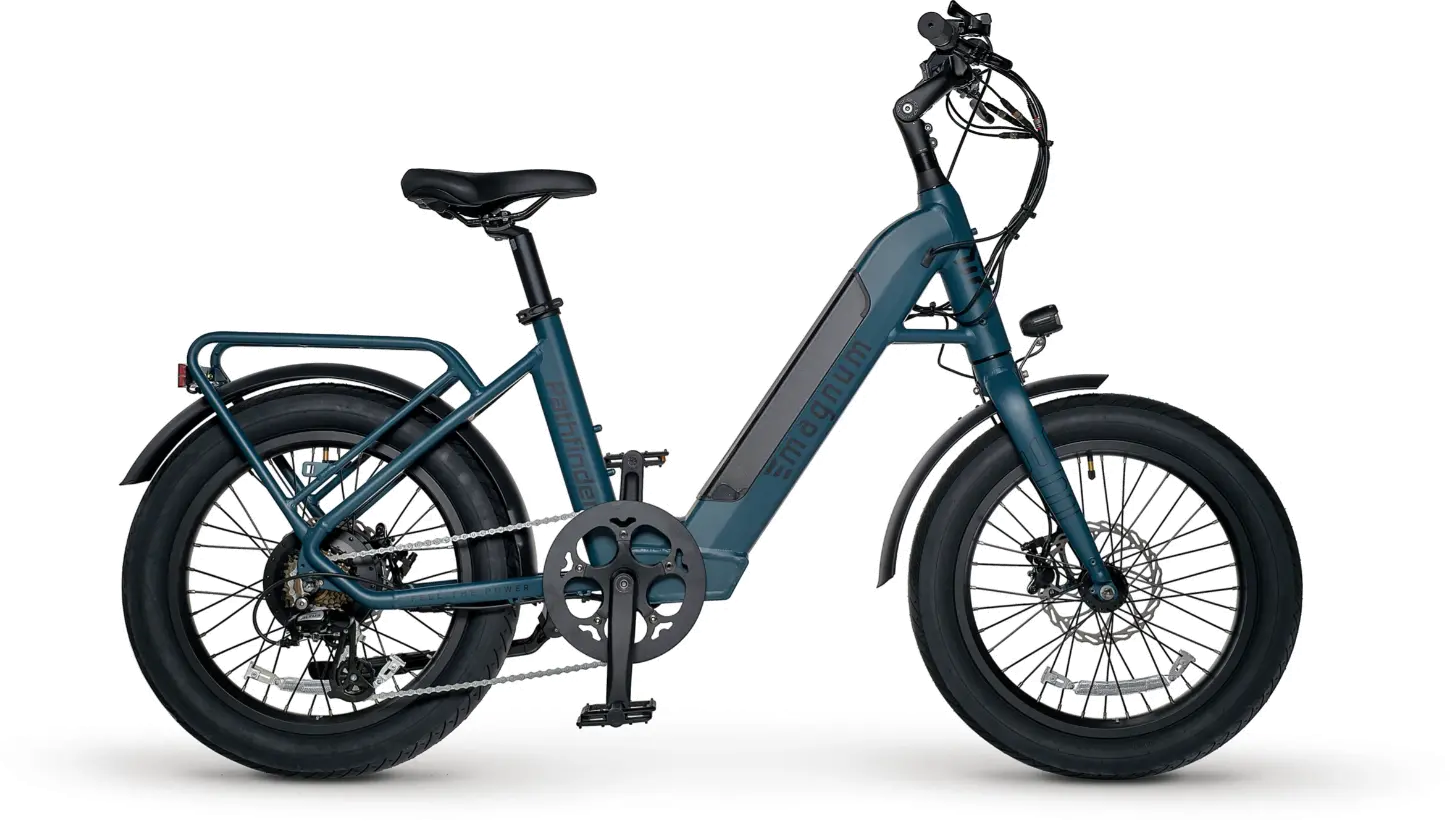

Magnum Pathfinder Torque Blue Fat Tire E-Bike
Best Online Price. Includes All Discounts and Sales
Customer Assembly Required.

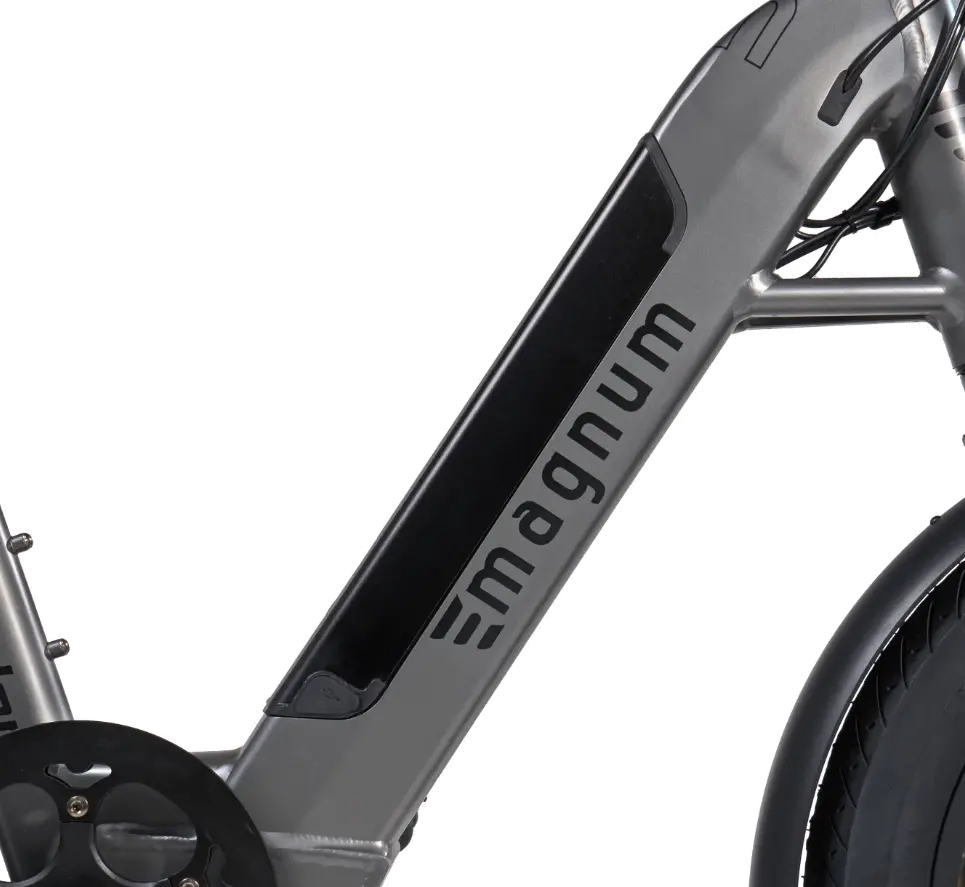

- The Battery
The heart of the Magnum Pathfinder T is the integrated, long-range 48V / 17.5Ah / 840Wh battery that powers rides up to 55 miles long, depending on variables like body and cargo weight, terrain, wind direction, and pedal assist level.
- Torque Sensor Pedal Assist
The Torque Sensor Pedal Assist amplifies the rider’s power on the pedals with electric motor power to produce a feeling of smoothness and control.

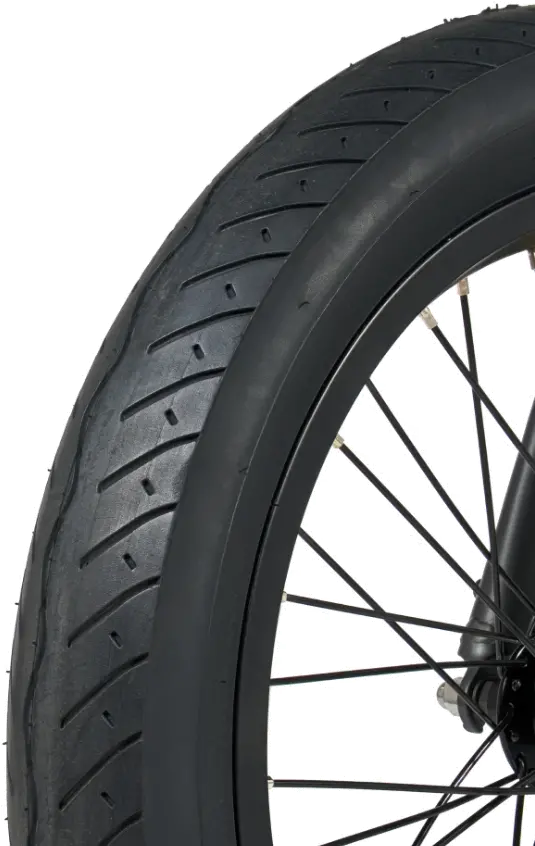

- 20" X 3" Fat Tire Wheels
Ride smoother, absorb extra shock, and improve stability. The Pathfinder's 3" fat tires improve handling over unexpected pot holes and uneven pavement, giving you extra traction, maneuvering, and comfort.

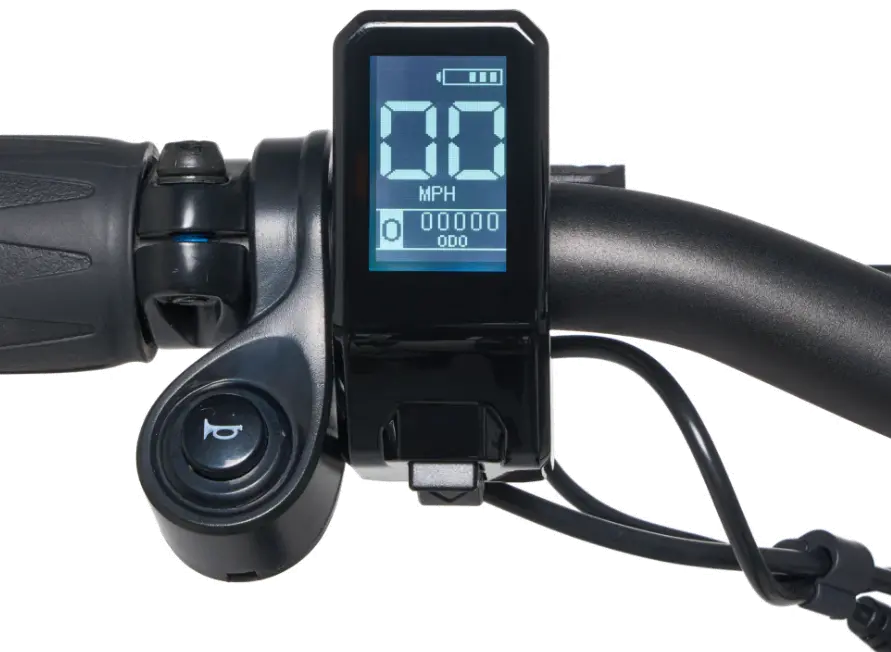

- Vision In-House Display
All the information you need right at your fingertips: Battery Level, Assist Level, Current Speed, Trip Distance, Odometer, Range, Trip Time, and More

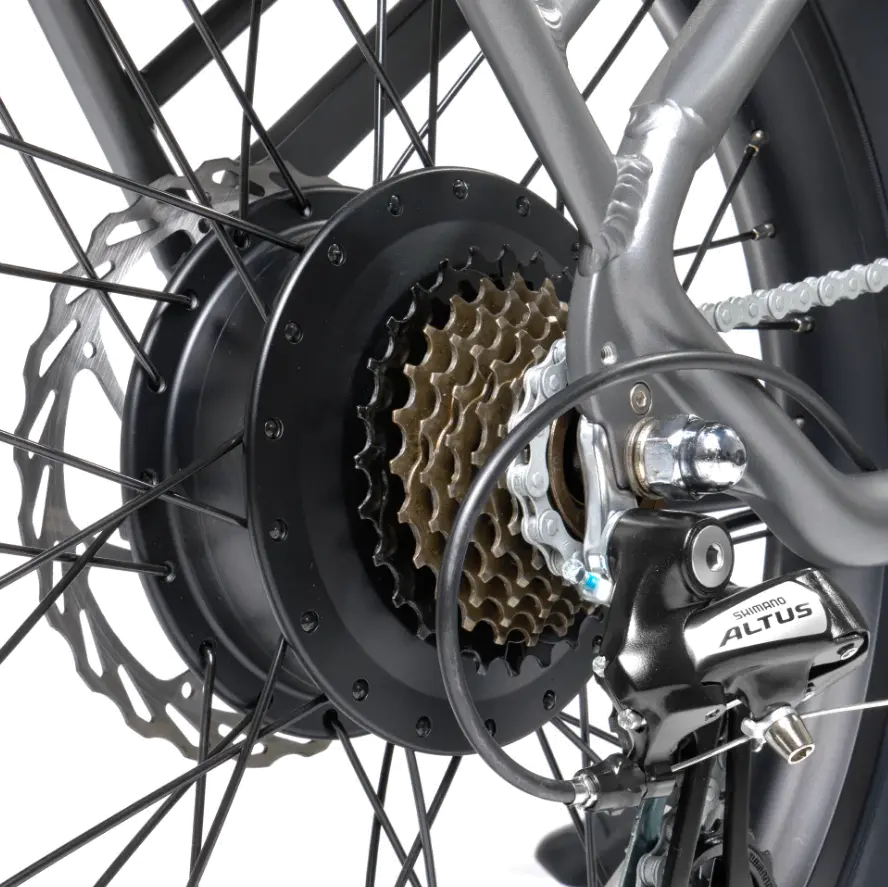

- 500 W Rear Geared Hub Motor
500 W motor with 6 modes of pedal assist, for speeds up to 25 mph

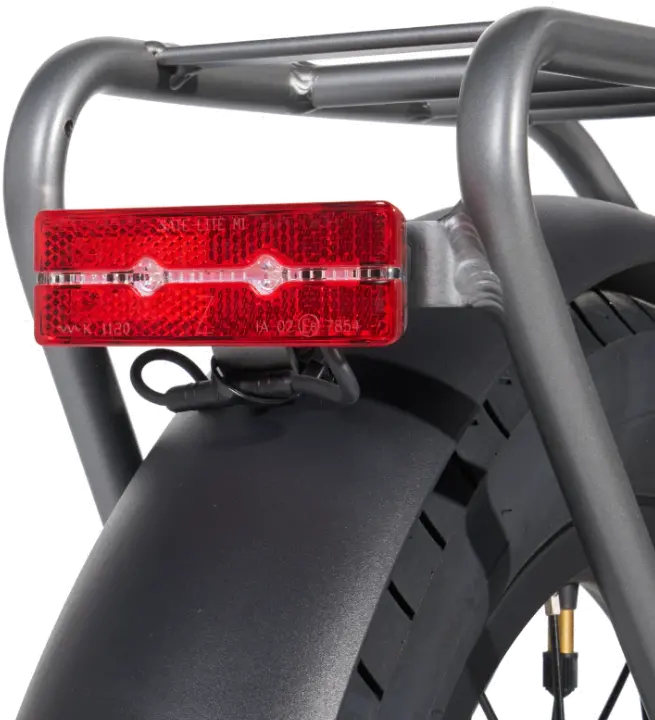

- Integrated Lights
Integrated powerful front headlight and rear light (with rear light activited by braking).

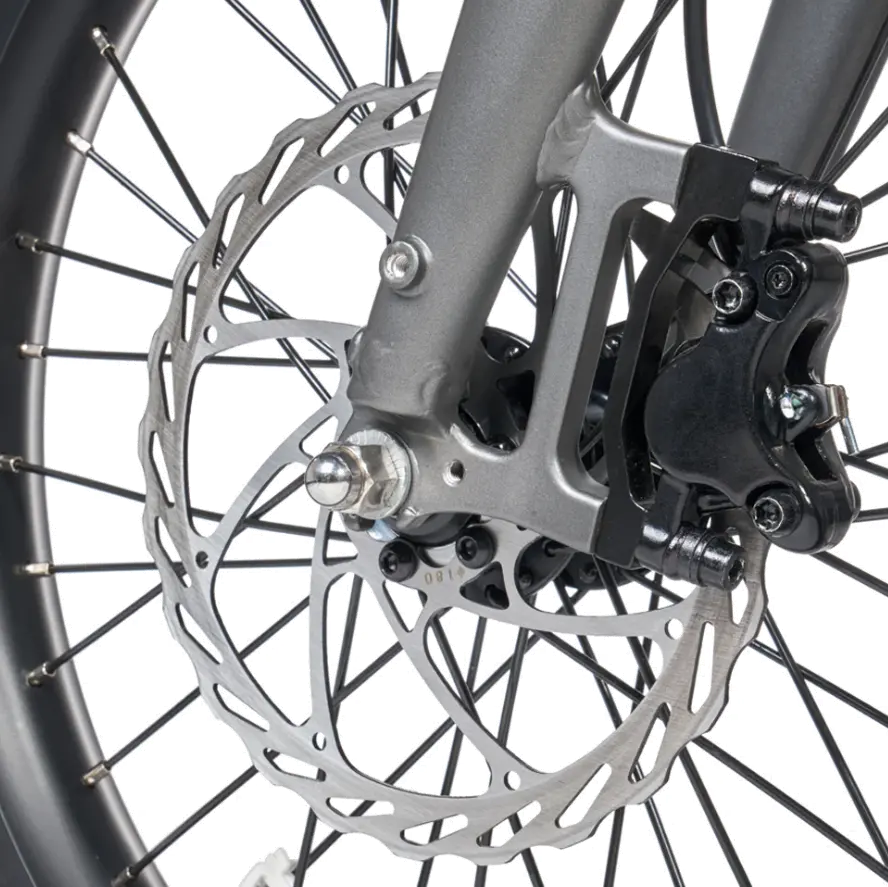

- Hydraulic Disc Brakes
Tektro hydraulic disc brakes bring you to a smooth, controlled stop.

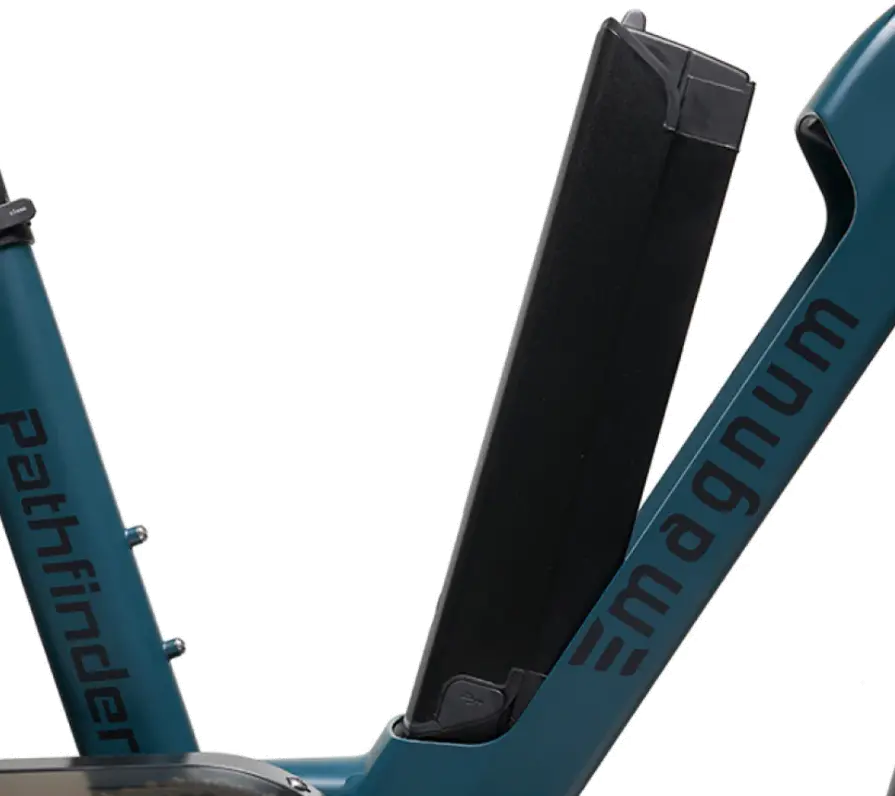

- Easy To Remove Integrated Battery
Long-range (up to 60 miles) battery for the freedom and power to tackle longer rides.
- Special Order Customization Available
|Class||Can be configured to a Class1, 2, or 3 E-Bike|
|Frame Type||Low Step|
|Perfect For||Gravel / Paved / Snow|
|Motor Brand||Vision In-House|
|Motor Type||Rear Hub Drive|
|Motor Nominal Output||500W|
|Motor Peak Output||750W|
|Battery Charge Time (from empty)||8.75 Hours|
|Minimum Range||35 Miles|
|Maximum Range||55 Miles|
|Display Type||Vision LCD Display|
|Display Readouts||Battery level, Assist Level, Current Speed, Trip Distance, Odometer, Range, Trip Time|
|Drive Modes||Torque Sensor Pedal Assist, Twist Throttle, Walk Mode|
|Top Speed||25 mph with Pedal Assist, 20 mph with Throttle|
|Lights||Head and tail light integrated with bike battery|
|Frame Material||Aluminum Alloy|
|Fork Details||Rigid Aluminum Alloy|

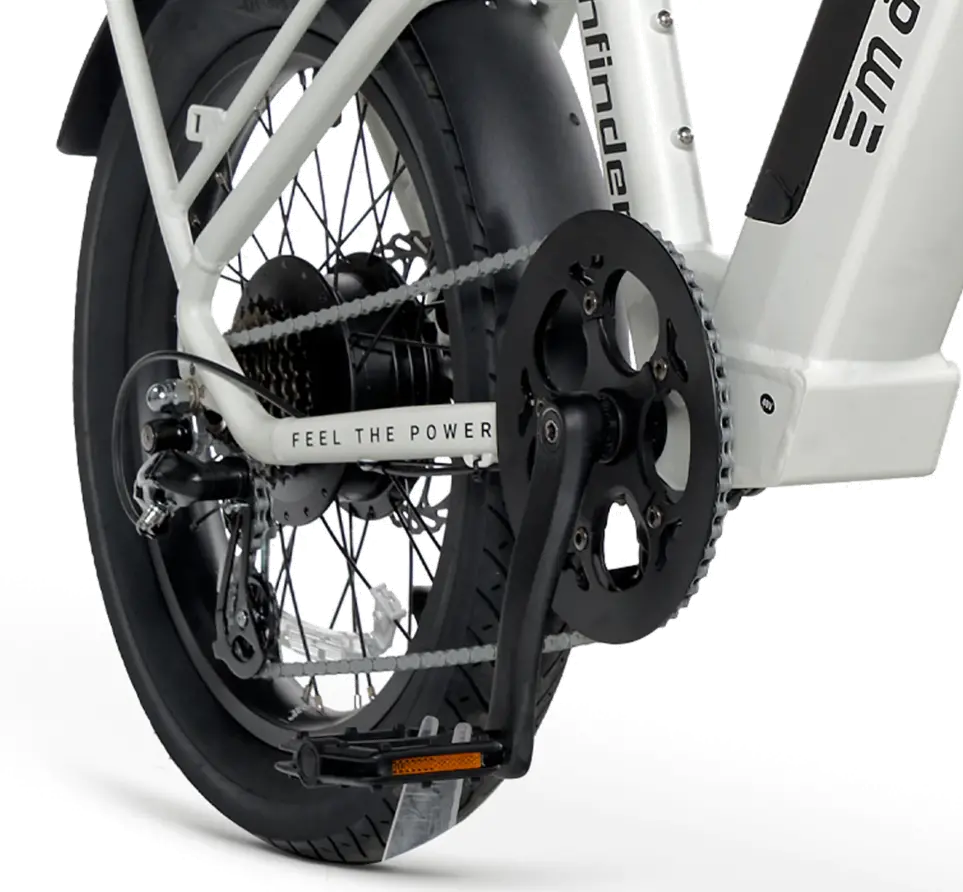

|Crank||Aluminum Alloy, 52T, 165mm|
|Pedals||Wide Plastic Platform with Reflectors|
|Stem||Tool Required Adjustable|
|Brakes||Hydraulic Disc Brake|
|Grips||Synthetic w/integrated throttle on right-hand side|
|Saddle||Velo Comfort Saddle|
|Tire Brand||Innova 20 x 3.0|
|Fenders||Front and Rear Included|
|Dimensions||63.75"W x 24"D x 29.5"H|
|Stand Over Height||16"|
|Virtual Top Tube||24"|
|Min Saddle Height||20.5"|
|Max Saddle Height||29.5"|
|Battery Weight||7.5 lbs|
|Minimum Rider Height||4'10"|
|Kickstand||Center-Mounted Single Side Kickstand|
|Charger||48V / 2A|
|Front Rack||Optional Front Rack (Not included)|
|Rear Rack||Included/welded into frame|
|Fenders||Includes front and rear|
|Accessory Mounts||Bottle Cage and Front Carrier Mounts|
