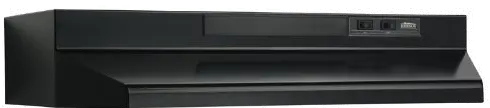

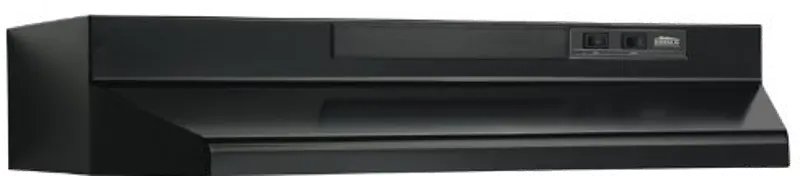

Broan Range Hood F40000 - 30 Inch Black

F403023 Broan Range Hood F40000 - 30 Inch Black

Broan Range Hood F40000 - 30 Inch Black

View our Broan page

Professional installation available for additional fee. Contact store for details.

Price includes any available discounts


The F40000 series provides installation flexibility with 4-way convertibility to fit virtually all applications. The hood is designed for under cabinet use and installs as 3-1/4 in. x 10 in. ducted opening with vertical or horizontal ducting; or 7 in. round vertical ducting or as non-ducted with air recirculation. The hood features a fan designed for years of trouble free service, an easy to clean grease filter, a protective lamp lens that distributes light evenly over the cook-top and control switches for fan speed and light activation.


  • 30" Convertible Hood
  • 190 Cfm 7"round Duct
  • 160 Cfm 3 1/4x10" Duct
  • Four-way convertible; installs ducted 3-1/4" x 10" (vertical and horizontal), 7" round (vertical) and non-ducted.
  • 2-speed Fan
  • 160 CFM, 6.5 Sone (3-1/4" x 10" discharge) or 190 CFM (7" round discharge) performance HVI 2100 Certified
  • Dishwasher-safe aluminum grease filter
  • Includes 3-1/4" x 10" damper/adapter and 7" round adapter.
  • Special Order Customization Available


Collection Broan


Dimensions 30"W x 17.5"D x 6"H
Finish Black
CFM 160
Sones 6.5
Color Finish Black
Light Number Of Levels 1
Light Type Incandescent
Nightlight Or Nightlight Setting No
Light Bulb Wattage 75W
Light Bulb Recommended Type A19
Light Bulb Quantity 1
Light Bulbs Included No
Filter Quantity 1
Filter Type Aluminum
Heat Sentry No
Motor Number Of Speeds 2
Boost Mode No
Built In Timer No
Remote Operation Capable No
ADA Compliance Yes
Damper Included Yes
Non-ducted Filter Included No
Switch Control Type Rocker
Non-Ducted Recirculation Capable Convertible built-in
Warranty 1 Year
UL Listed UL Listed
Duct Connector Size 3-1/4" x 10" or 7" Round
Duct Direction Horizontal/Vertical
Duct Shape Rectangular or Round
Duct Diameter 7"
Duct Height Rectangular 3 1/4
Duct Width Rectangular 10"
HVI Certified Yes
Amperage 2.5
Rated Voltage 120
Wattage 300
