Nest x Yale Lock with Google Nest Connect
Nest x Yale Lock with Google Nest Connect
Let someone in from anywhere.
When the Nest × Yale Lock is connected to the Nest app, you can unlock your door from your phone. Create passcodes for family, guests and people you trust. Get alerts whenever someone unlocks and locks the door. And when Nest knows you’re away, your door can lock automatically.
Lock it up.
Check the status of your door and lock it from anywhere hands‑free with the Google Assistant. You can also enter a passcode, use one‑touch locking, or lock it from the Nest app.
It’s secure and tamper-proof.
The Nest × Yale Lock replaces the deadbolt you already have. If someone tries to tamper with it, you’ll get an alert. If the batteries start running low, you’ll know right away. And if your lock loses power, you can quickly charge it with a 9V battery to unlock the door.
How it works.
The Nest × Yale Lock connects to your WiFi and the Nest app through Nest Connect or Nest Guard. You’ll need either one to lock and unlock your door remotely.
- Secure
- Tamper proof
- Key free deadbolt
- Connects to Nest APP
- Unlock your door from anywhere
- Give passcode to guests
- Lock and check your door status with your voice
- Includes Nest Connect
- In The Box:
- Nest × Yale Lock
- Installation Guide with removable door template
- Strike plate
- Mounting screws
- 4 AA alkaline batteries
- Nest Connect
- Quick Start Card
| Model | RB-YRD540-WV-619 |
|---|---|
| Finish | Satin Nickel/White |
| Nest x Yale Lock | |

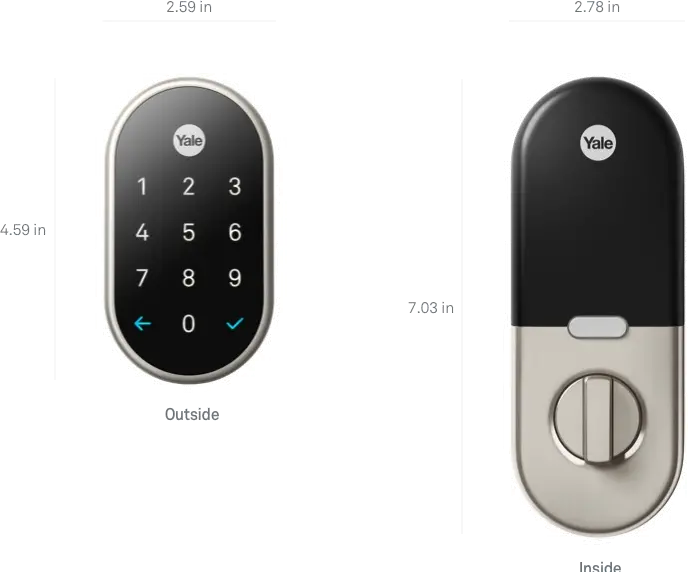

| Dimensions (Outside) | 2.59"W x 0.8"D x 4.59"H |
| Dimensions (Inside) | 2.78"W x 2.02"D x 7.03"H |
| Weight | 2 lbs. |
| Power Requirements | 4 AA batteries (Included, rechargeable batteries not recommended.) |
| Battery Life | 1 year |
| Audio | Talking lock with input chime |
| Lights | LED keypad, Privacy Mode indicator |
| Operating Temperature (Outside) | –22° to 140°F (–30° to 60°C) |
| Operating Temperature (Battery) | 14° to 131°F (–10° to 55°C) |
| Certification | Certified ANSI/BHMA A156.36, Grade 2 |
| Wireless | Thread running over 802.15.4 |
| Product Requirements | To control the Nest × Yale Lock from your phone, you need a Nest Guard or Nest Connect (included). Requires a compatible phone or tablet with the free Nest app and Bluetooth 4.0. Nest Connect requires an indoor outlet. Remote access using the Nest app requires creation of a Nest Account and acceptance of Terms of Service. Some features, including mobile alerts, remote control and custom schedules, require the Nest app, working internet and WiFi, and a Nest Connect or Nest Guard. Requires 4 AA non-rechargeable batteries (included). If batteries become depleted, you can unlock the door using a 9V battery for power. |
| Connectivity Requirements | The Nest × Yale Lock requires a Nest Guard or Nest Connect (not included with the standalone lock) to connect to the internet over WiFi, enabling remote access with the Nest app. Requires WiFi 802.11b/g/n (WEP, WPA, WPA2 encryption supported). |
| Languages | English, Spanish, French |
| Green | RoHS compliant |
| Nest Connect | |
| Dimensions | 2.2"W x 1.2"D x 3.1"H |
| Weight | 0.98 oz (27.78 g) |
| Power Requirements | Built-in rechargeable lithium-ion battery |
| Power input | 100-240 V∼50-60Hz 0.12A |
| Lights | LED light |
| Colors | White |
| Operating Temperature | 32° to 104°F (0° to 40°C) (Indoor use only) |
| Certification | UL 60950-1, CAN/CSA-C22.2 NO. 60950-1, Information Technology Equipment |
| Wireless | WiFi 802.11 b/g/n, 2.4GHz (WPA-PSK, WPA2-PSK, WEP encryption supported), 802.15.4 @ 2.4GHz, Bluetooth Low Energy (BLE) |
| Product Requirements | WiFi connection with internet access. Requires an indoor outlet and a compatible phone or tablet with the free Nest app and Bluetooth 4.0. |
| Green | Contains no hazardous substances. RoHS compliant. REACH compliant. Recyclable packaging. Title 20 battery charger compliant |
Manufacturer Warranties
- Nest × Yale Lock with Lifetime Limited Warranty for Finish and Mechanical; Two-Year for Electronics
- Nest Connect with 2-year Limited Warranty
