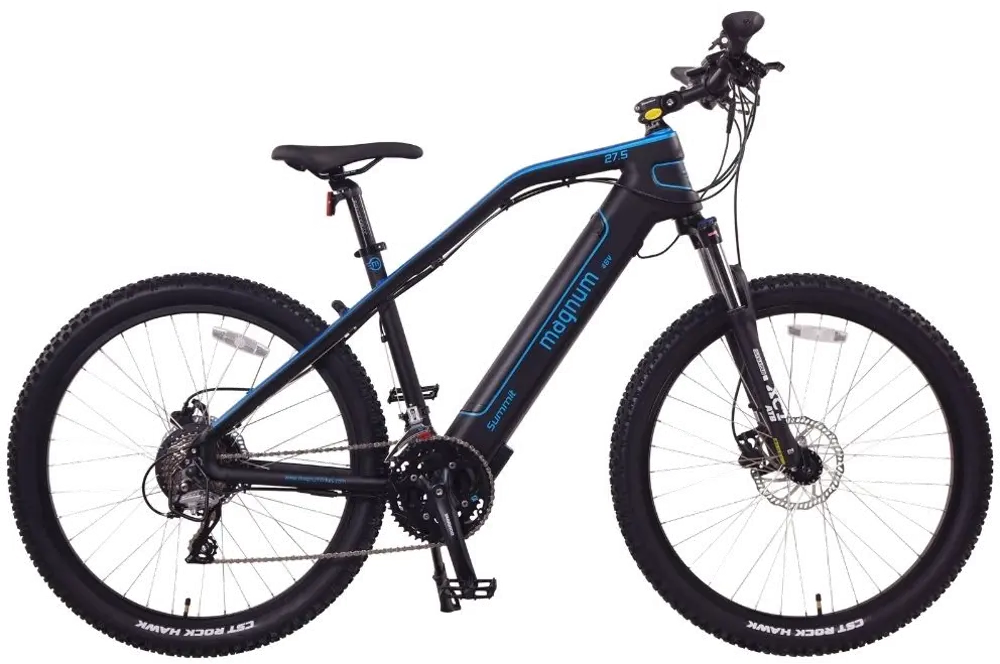

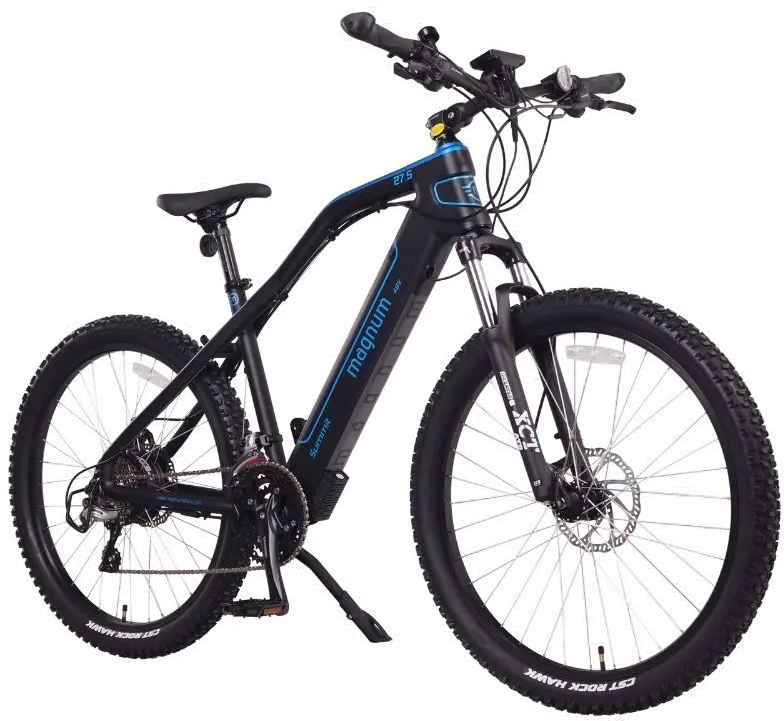

Magnum Summit Electric Bike with 27.5" Wheels - Blue and Black
Magnum Summit Electric Bike with 27.5" Wheels - Blue and Black
2199.99
Best Online Price. Includes All Discounts and Sales
Hit the trails with the Magnum Summit Electric Bike with 27.
5" Wheels. This e-bike features a 48v, 500w power system so you can get up to a max speed of 25 mph with pedal assist. The fully integrated battery gives this bike a sleek design. Available at RC Willey.
Assembly Required.
- 48v, 500w Power system
- Max speed of 25 mph with pedal assist and 20 mph with throttle only
- Fully integrated battery
- Sleek design and high end components
| Collection | Magnum |
|---|---|
| Dimensions | 9"W x 69"D x 42"H |
| Weight | 75 lbs. |
| Color | Blue and Black |
| Body Position | Forward |
| Electric Bike Class | Throttle On-Demand (Class 2), Speed Pedelec (Class 3), Throttle can be removed for Class 1 |
| Max Load | 265 lbs |
| Electronic Details | |
| Motor Type | Das-kit R4 Rear Geared Hub Motor |
| Motor Output | 48v 500w |
| Battery Voltage/Amp Hours/Watt Hours | 48v / 12.8ah / 614wh |
| Battery Chemistry | Lithium Nickel Cobalt Manganese (Li-ncm) |
| Estimated Charge Time | 6.5 Hrs |
| Estimated Min and Max Range | 25 To 55 Miles (Depending On Riding Style, Terrain, Rider Weight and Pedal Assist Level) |
| Display Type | Fixed, Backlit, Monochrome LCD |
| Display Readouts | Power Output Indicator, Battery Level, Speed, Assist Level, Odometer, Trip Distance, Trip Time |
| Drive Modes | Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode |
| Top Speed | 25mph with Pedal Assist, 20mph Throttle Only |
| Bicycle Details | |
| Frame Type | High Step with Fully Integrated Battery |
| Frame Material | Aluminum Alloy |
| Fork Details | Sr Suntour XCT ATB Spring Suspension, 100mm, 80mm |
| Gearing Details | 24 Speed 3x8 |
| Shifter Details | Shimano Shifter |
| Cranks | Shimano |
| Stem | Promax, Aluminum Alloy |
| Brake Details | Tektro Hydraulic Disc Brakes |
| Grips | Velo Flat Rubber |
| Saddle | Promax |
| Seatpost | Promax |
| Rims | Aluminum Alloy |
| Tires | CST Rock Hawk |
| Wheel Size | 27.5" x 2.4" |
| Dimensions | |
| Max Seat Height *Measured from the bottom pedal stroke | 36" |
| Min Seat Height *Measured from the bottom pedal stroke | 28" |
| Seat Tube | 16" |
| Standover Height | 30" |
| Handlebar Height | 43.5" - 46" |
| Handlebar Width | 30" |
| Total Length | 72" |
| Wheelbase | 43" |
Manufacturer Warranties
- 1-Year Warranty
