Zephyr 30 Inch Range Hood - Vortex, Stainless Steel

Zephyr 30 Inch Range Hood - Vortex, Stainless Steel

SKU: 112502245 MODEL: AK9028BS
Limited Stock
Due to manufacturer restrictions, we're required to display a minimum advertised price on product listings. To see the actual price of the product you're interested in, add it to your cart, and the cost due at checkout will update to the lowest available amount. Don't worry if you decide not to purchase, you can always remove the item from your cart and continue shopping.

Professional installation available for additional fee. Contact store for details.

Available Options

30 36
Estimated shipping to
Loading Icon
Not eligible for additional discounts

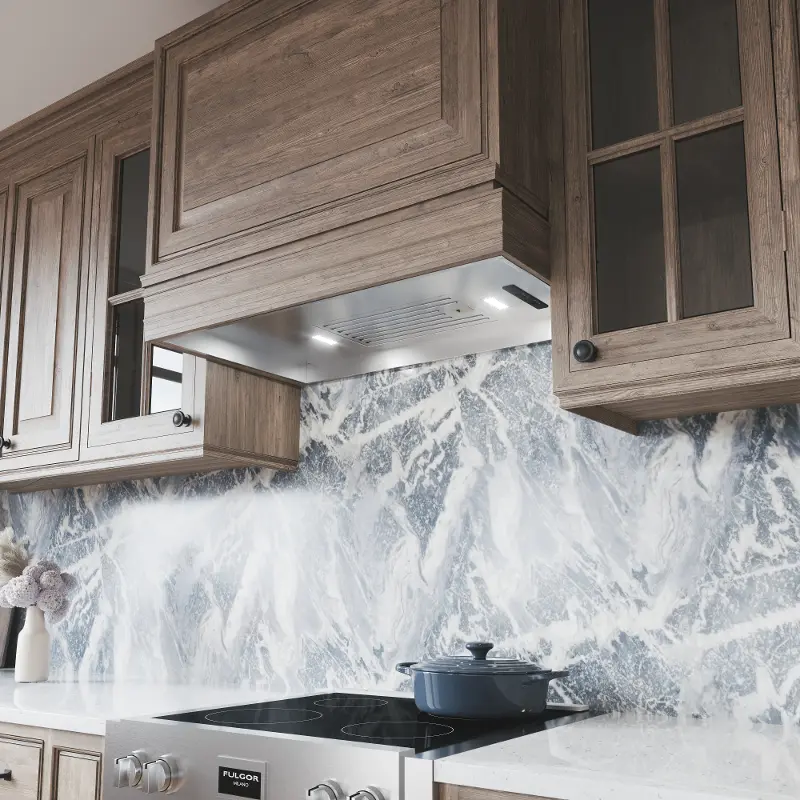

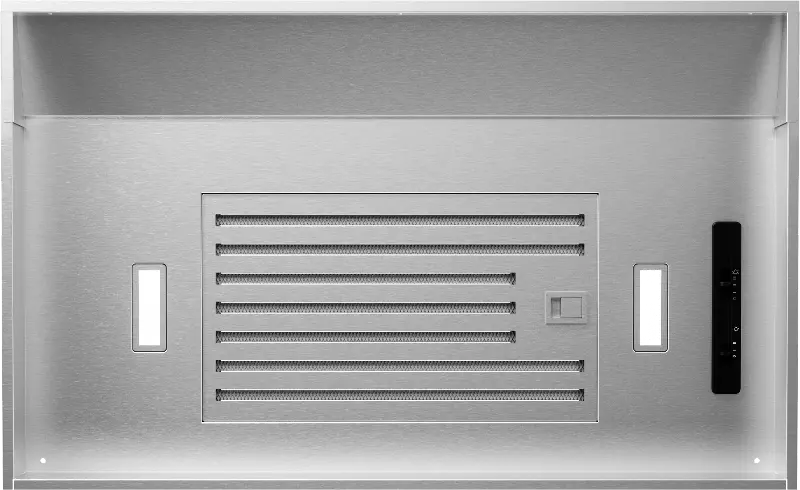

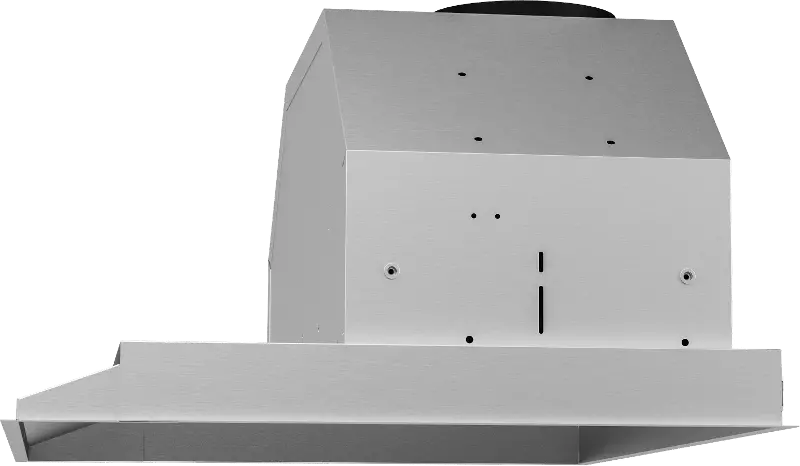

This 30 inch Zephyr Vortex insert leads the way as the industry’s first adjustable-depth insert. Vortex is designed to extend 3 inches to accommodate custom hood depths from 17-1/2 to 20-1/2 inches. Add to this its quiet, 390-CFM blower, dual-level LumiLight LED lighting, and optional recirculating kit and you will discover Vortex stands tall among the rest.

  • LumiLight LED Lighting
  • Dual-Level Lighting
  • Mechanical Slide Controls
  • Hybrid Baffle Filter
  • Adjustable Depth
  • Owners Manual

  • Specifications

Mount Type Insert
Weight 36.6 lbs.


Collection AK90BS
Finish Stainless Steel
Fingerprint Resistant No
Overall Dimensions 29.13"W x 20.38"D x 13.5"H
Cutout Dimensions 26.63"W x 10.5”D
Control Type Mechanical Slide
Exhaust Vent Location Horizontal or Vertical
Number of Fan Speeds 3
Blower Force 200 - 390 CFM
Operation Sound Level 1.4 - 5 Sones
Number of Lights 2
Bulb Type Required LumiLight LED, 6W
Number of Light Levels 2
Recirculating Options Yes, with Optional Kit
Automatic Delay Shut Off No
Amperage 4A
Voltage 120V

Manufacturer Warranties

  • 3-Year Parts, 1-Year Labor Limited Manufacturer Warranty
