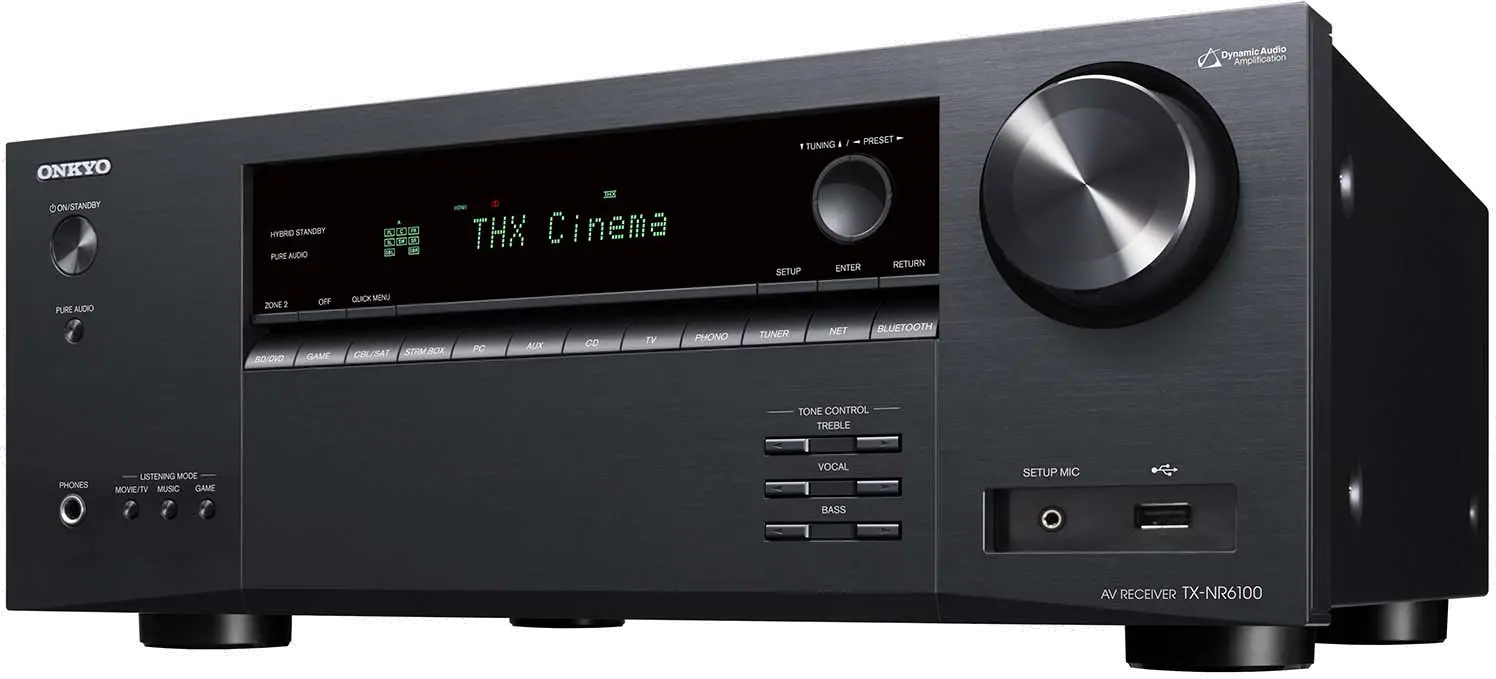

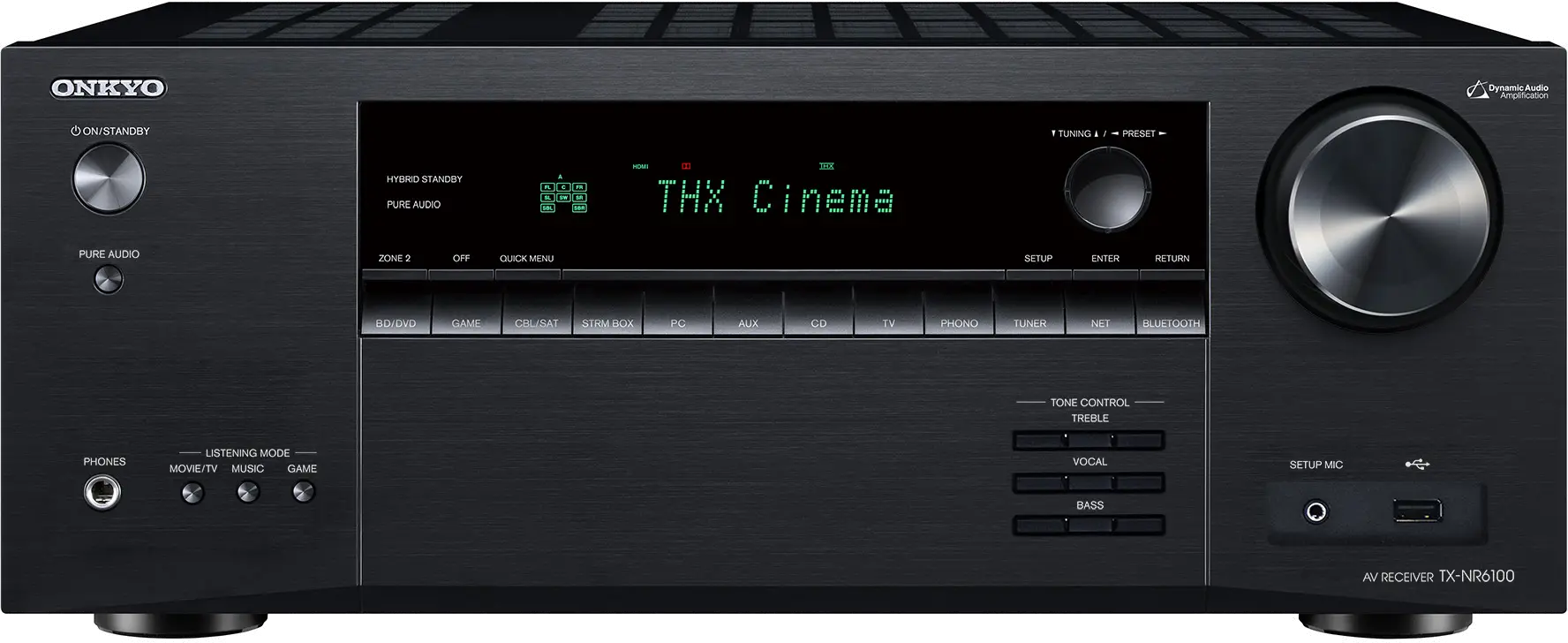

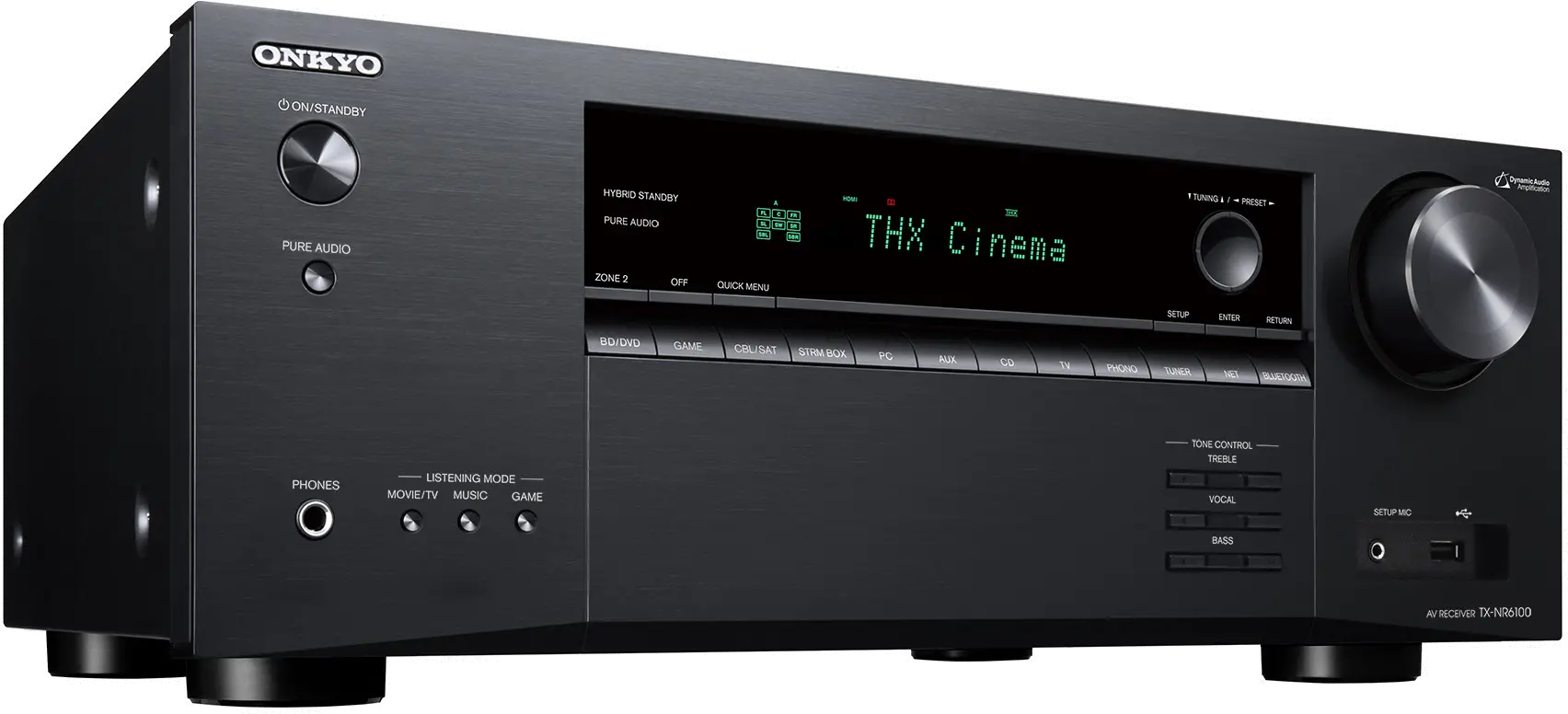

Onkyo TX-NR6100 7.2-Channel THX Certified AV Receiver
Onkyo TX-NR6100 7.2-Channel THX Certified AV Receiver
Setting the bar for reference sound while bringing 8K video to your compatible display over HDMI® 2.1, you can enjoy Dolby Atmos® and DTS: X® soundtracks through your height-enabled surround system or use upmixing and virtualization solutions from DTS® and Dolby® to create a 3D sound-field from any layout.
Featuring three HDMI outputs and 100 watts of power per channel, the TX-NR6100 AV receiver delivers uncompressed HDMI 2.1 8K 60Hz and 4K/120Hz with HDR over 40 Gbps, increasing the bandwidth over its predecessors. This SMART AV Receiver™ delivers an unparalleled movie, music, and gaming experience to your living room.
- Ready for 8K/4K entertainment
- Enhanced Gaming:
Own your opponents with HDMI 2.1 enhancements for gamers: 4K/120Hz HDR pass-through enables ultra-fast motion – VRR (Variable Refresh Rate) eliminates lag, stutter, and frame-tearing for fluid gameplay. – ALLM (Auto Low Latency Mode) optimizes latency from source to screen – QFT (Quick Frame Transport) limits lag for a smoother experience.
- Immersive Sound from your TV Apps:
eARC (Enhanced Audio Return Channel) simplifies connectivity and supports the latest high-bitrate audio formats including Dolby Atmos®, DTS-HD Master Audio™, DTS: X®, Dolby® TrueHD.
- Stream your favorite music:
Use Works with Sonos 1, Chromecast built-in™, AirPlay 2, and DTS Play-Fi®; includes Spotify®, Amazon Music, Pandora®, TIDAL, Deezer, or TuneIn streaming services
- Voice Control:
Work with your digital assistant in any room with easy Google and Amazon Alexa SMART home ecosystem integrations
- Klipsch Optimize Mode
allows you to easily integrate your Klipsch Reference and Reference Premiere speakers seamlessly with your Onkyo AV receiver. Klipsch and Onkyo teamed up to implement the precise crossover values for specific new Reference Premiere speakers. Now, you can simply select the model speakers you’ll be using for each individual channel, and the optimized crossover setting will be automatically applied.
- 210 W/Ch THX® Certified Select Dynamic Audio Amplification system
- 5.2.2-channel Dolby Atmos® and DTS:X playback
- Dolby Atmos Height Virtualizer and DTS Virtual: X™ 3D sound virtualization technologies
- Stream over 5 GHz/2.4 GHz dual-band Wi-Fi®
- Send or receive audio via Bluetooth® wireless technology
- Apple AirPlay 2
- Music made easy with Chromecast built-in
| Collection | TXNR6100 |
|---|---|
| Model | ONKYO TX-NR6100 |
| Dimensions | 17"W x 6"D x 14"H |
| Weight | 21.7 lbs. |
| General | |
| Power supply | AC 120 V~, 60 Hz |
| Power consumption (operating) | 635 W |
| Power consumption (idle) | 65 W |
| Power consumption (standby) | 0.1 W |
| SMART AV Receiver™ | Works with Sonos (sold separately), Chromecast built-in™, AirPlay 2, and DTS Play-Fi®; includes Spot |
| Works with Hey Google or Alexa* | Digital Voice Assistant Sold Separately |
| Stream Capability | 5 GHz/2.4 GHz dual-band Wi-Fi® supporting the 802.11ac standard |
| Amplifier | |
| Power output (All channels) | 210 W/Ch (6 ohms, 1 kHz, 10% THD,1-ch driven) 100 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven, FTC) |
| Dynamic power | 240 W (3 ohms, Front) 210 W (4 ohms, Front) 120 W (8 ohms, Front) |
| THD+N (Total Harmonic Distortion + Noise) | 0.08% (20 Hz–20 kHz, half power) |
| Input sensitivity and impedance | 200 mV rms/47 k-ohms (Line) 3.5 mV rms/47 k-ohms (Phono MM) |
| Rated RCA output level and impedance | 1 V rms/470 ohms (Subwoofer pre-out) 200 mV rms/470 ohms (Zone 2/Zone B line-out) |
| Frequency response | 10 Hz–100 kHz/+1 dB, -3 dB (Direct/Pure Audio) |
| Tone control | ±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble) |
| Signal-to-noise ratio | 106 dB (Line, IHF-A) 80 dB (Phono, IHF-A) |
| Speaker impedance | 4–16 ohms |
| HDMI® 2.1 | Supports: 4K120AB and 8K60B, HDR10+, Dolby Vision and BT.2020 color; VRR (Variable Refresh Rate), AL |
| HDMI Sub Out | For media transmission to a projector, gaming monitor, or TV |
| Tuner | |
| FM | 87.5 MHz–107.9 MHz |
| AM | 530 kHz–1,710 kHz |
| FM/AM preset memory | 40 stations |
| What's Included | |
| Indoor FM antenna | Yes |
| AM loop antenna | Yes |
| Speaker setup microphone | Yes |
| Quick Start Guide | Yes |

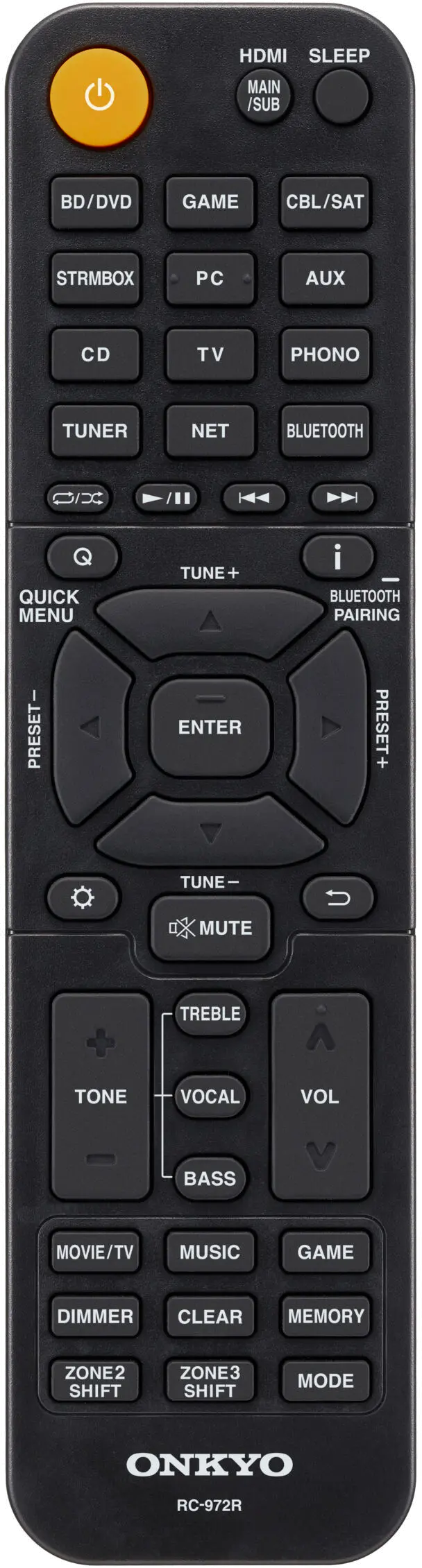

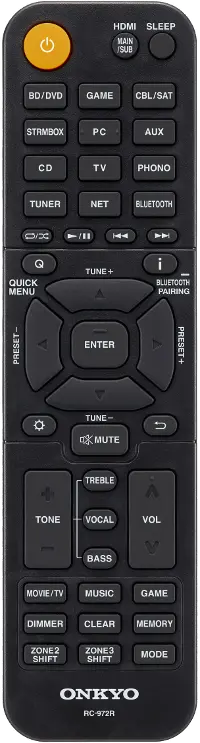

| Remote control | Yes |
| Two AAA (R03) batteries | Yes |
Manufacturer Warranties
- 1-Year Parts and Labor
