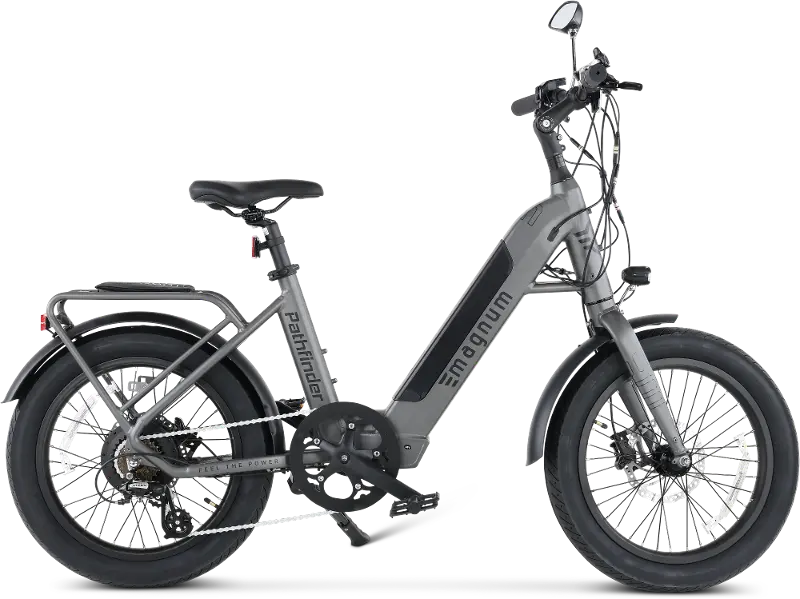

Magnum Pathfinder 48-Volt, 500W Electric Bike - Slate Gray

Magnum Pathfinder 48-Volt, 500W Electric Bike - Slate Gray

SKU: 113049382
Estimated shipping to
Loading Icon

Assembly Required

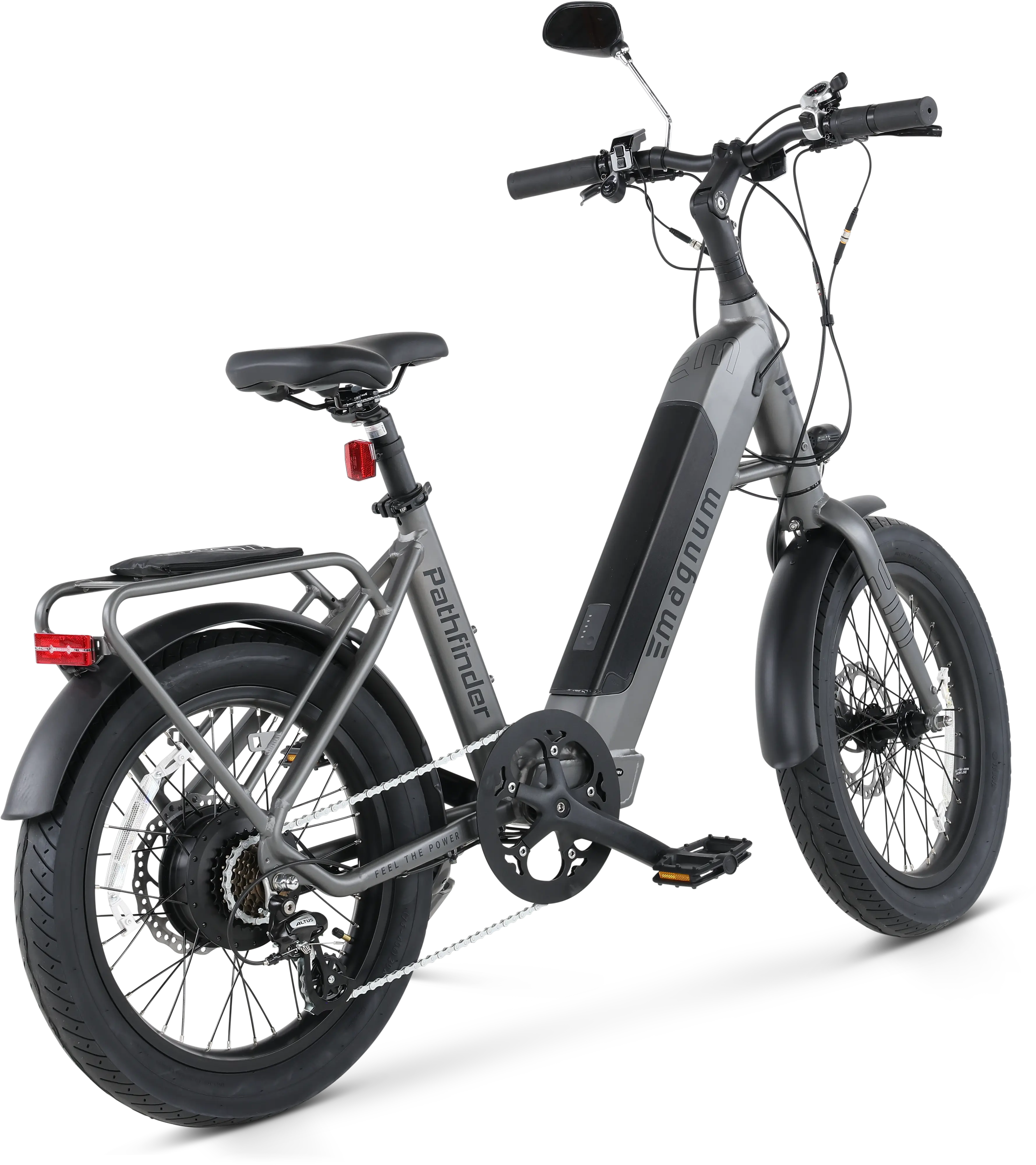

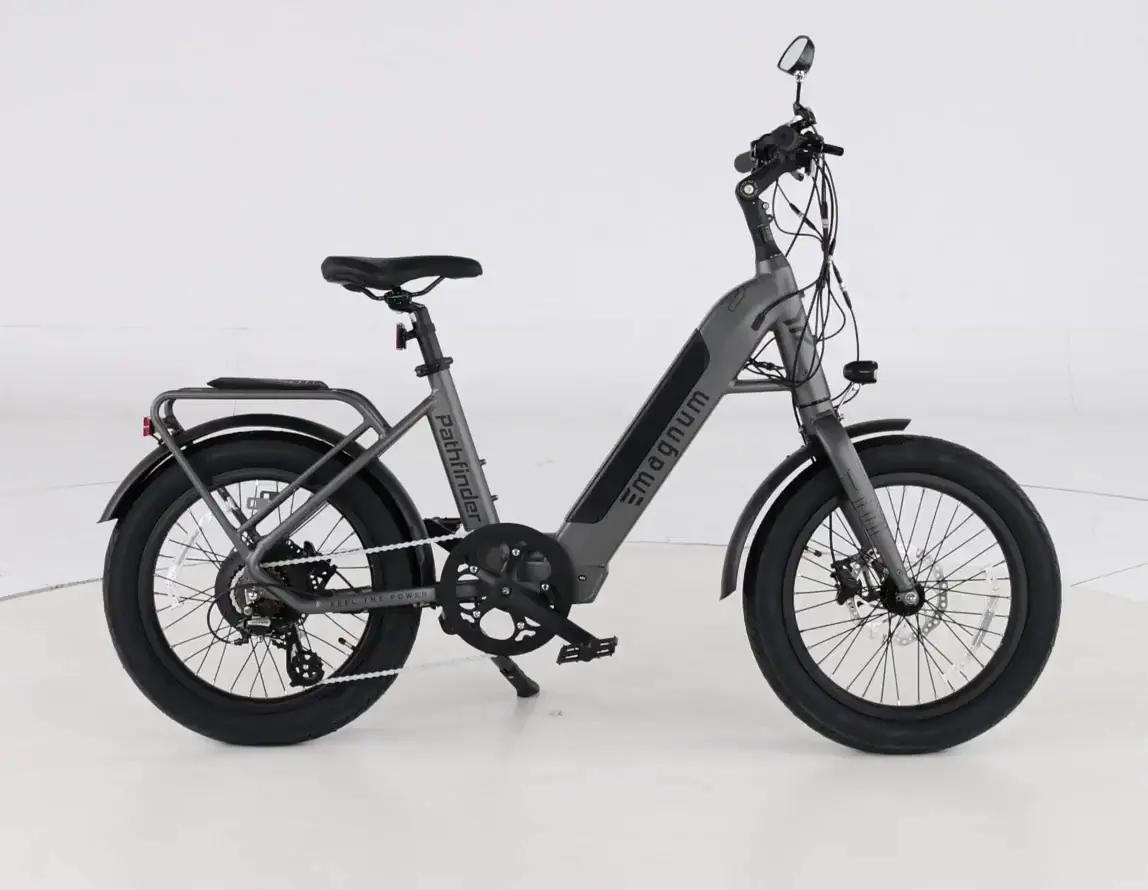

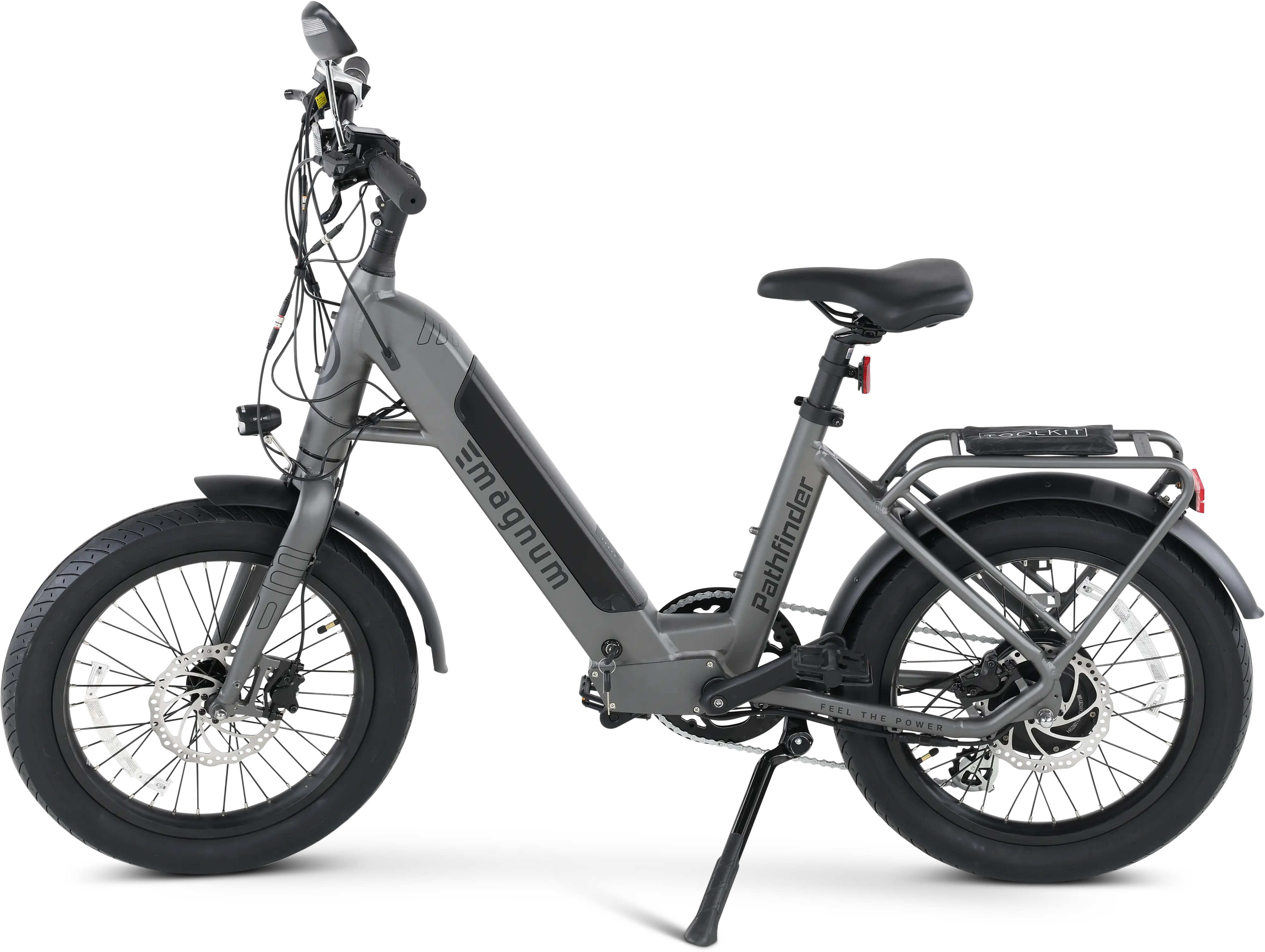

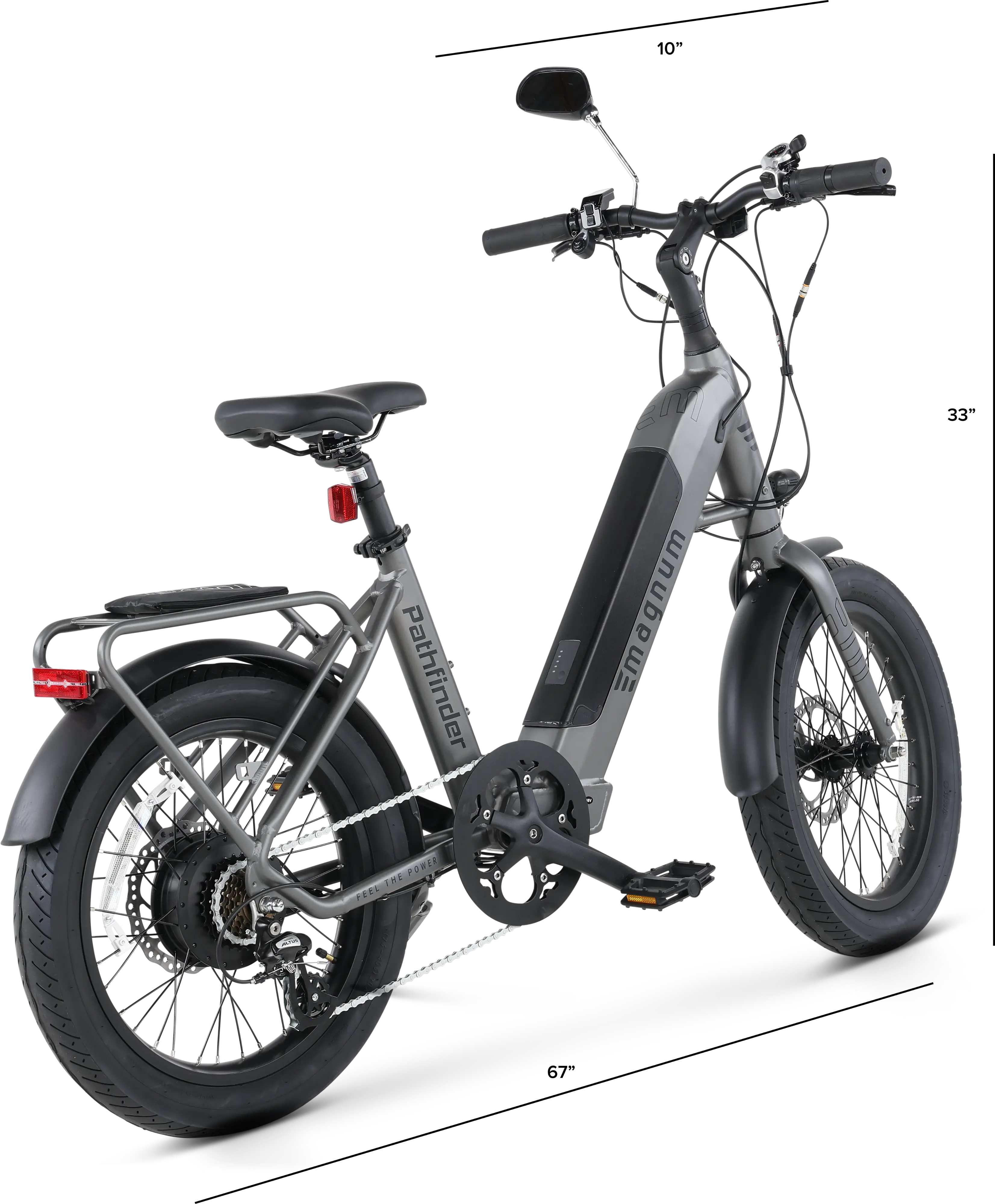

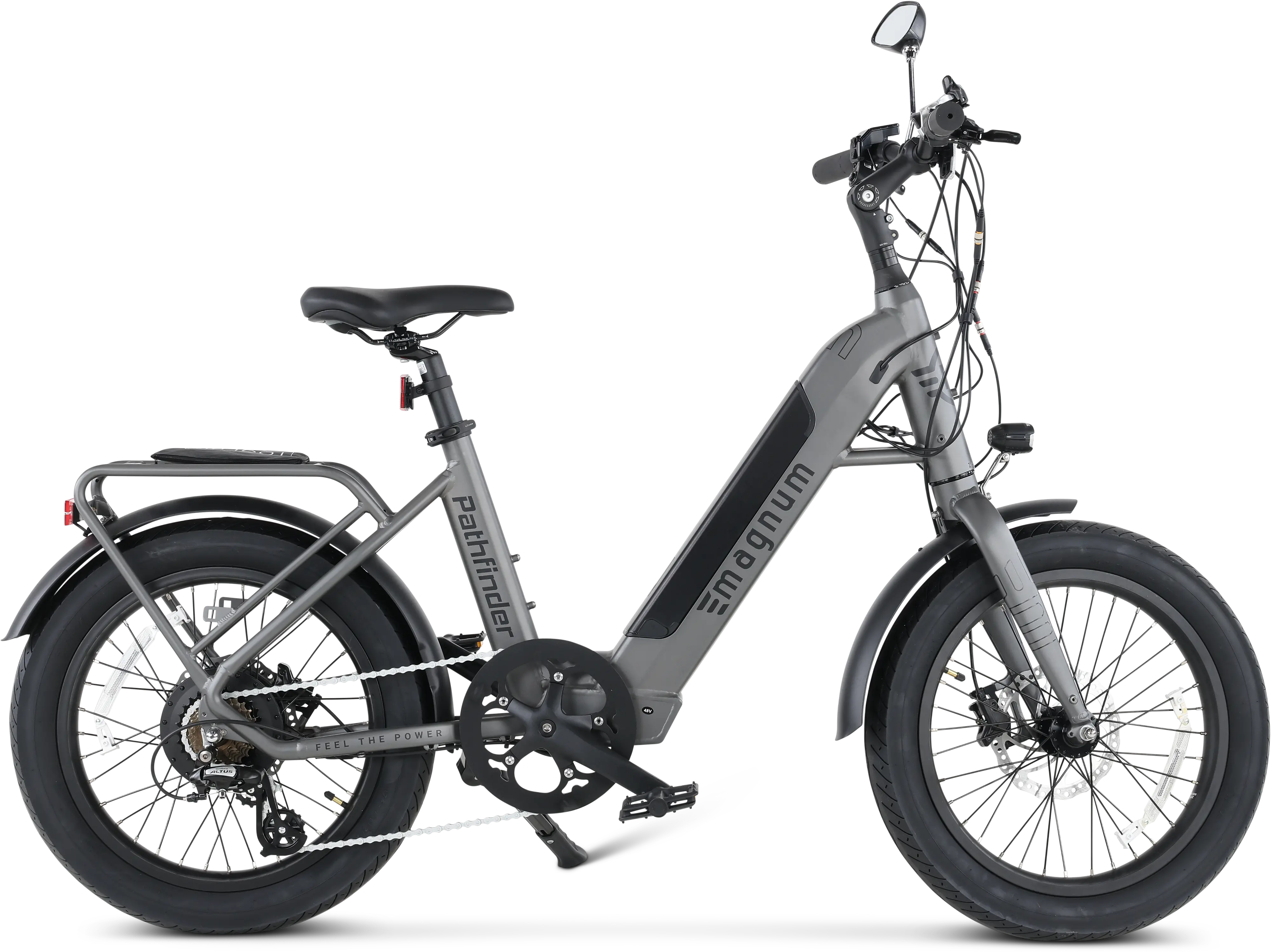

Make your own path with the Magnum Pathfinder 48-Volt, 500W Electric Bike in Slate Gray. This compact bike features a powerful motor that will take you 30-50 miles with 6 assist levels. The convenient handlebar display shows speed, battery level, and much more, so you'll never be left guessing. From the trails to the neighborhood, this Pathfinder Electric Bike is sure to please.

Assembly Required.

  • 20" Fat tire
  • Fully integrated battery
  • Small frame - great fit for riders under 5'4"

Collection Magnum
Dimensions 24"W x 64"D x 33"H
Weight 70 lbs.
Color Slate Gray
Body Position Upright
Max Load 265lbs
Electronic Details
Motor Type Rear Geared Hub Motor
Motor Output 48v 500w
Battery Voltage/Amp Hours/Watt Hours 48v/13ah/624wh
Estimated Charge Time 6.5 Hours
Estimated Min and Max Range 30 to 50 Miles (Depending on Riding Style, Terrain, Rider Weight and Pedal Assist Level)

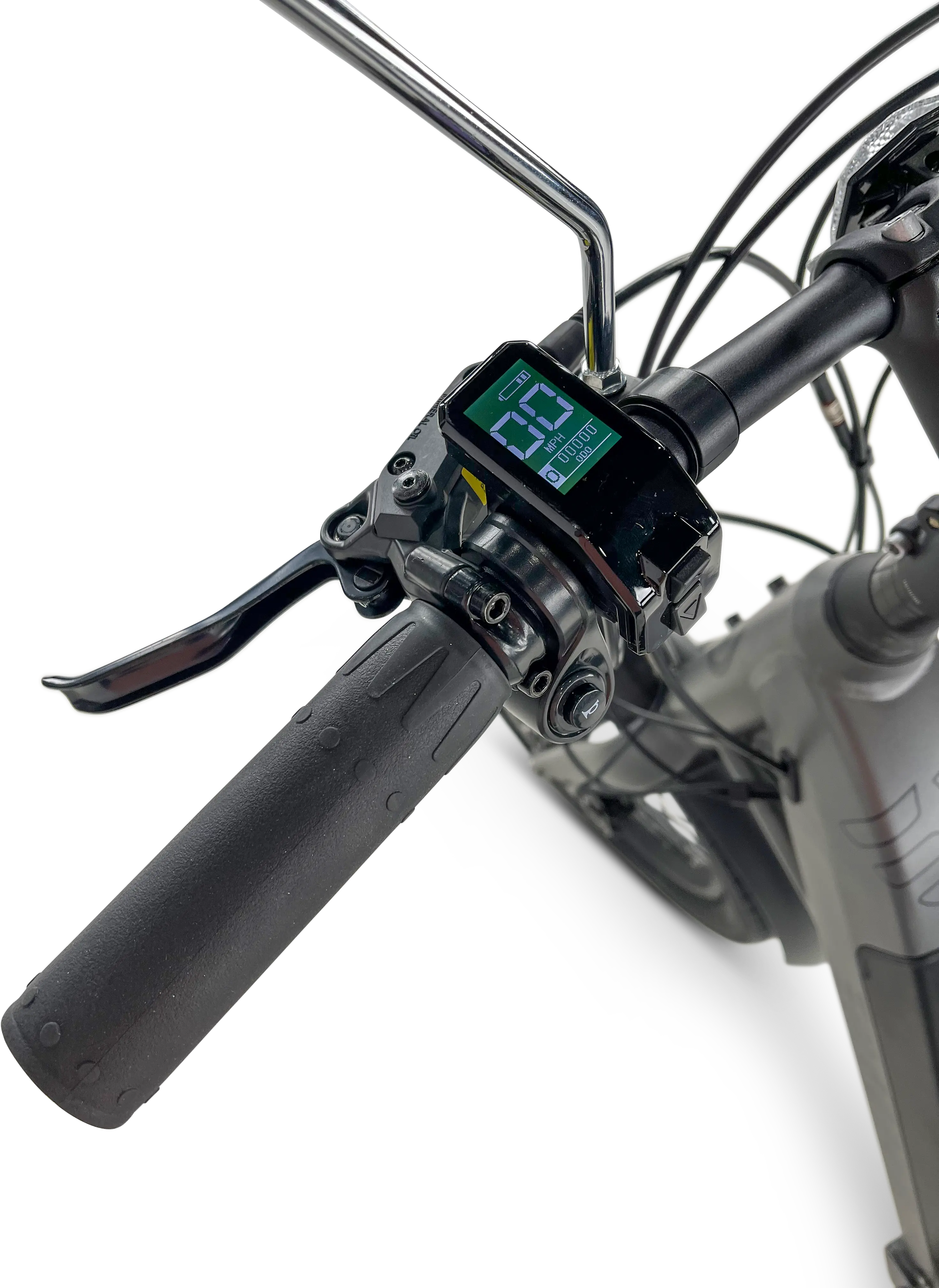

Display Type Vison LCD Display
Display Readouts Speed, Assist Level 0-6, Battery Level, Odometer, Trip Distance, Range
Drive Modes Pedal Assist, Twist Throttle
Max Speed 25mph

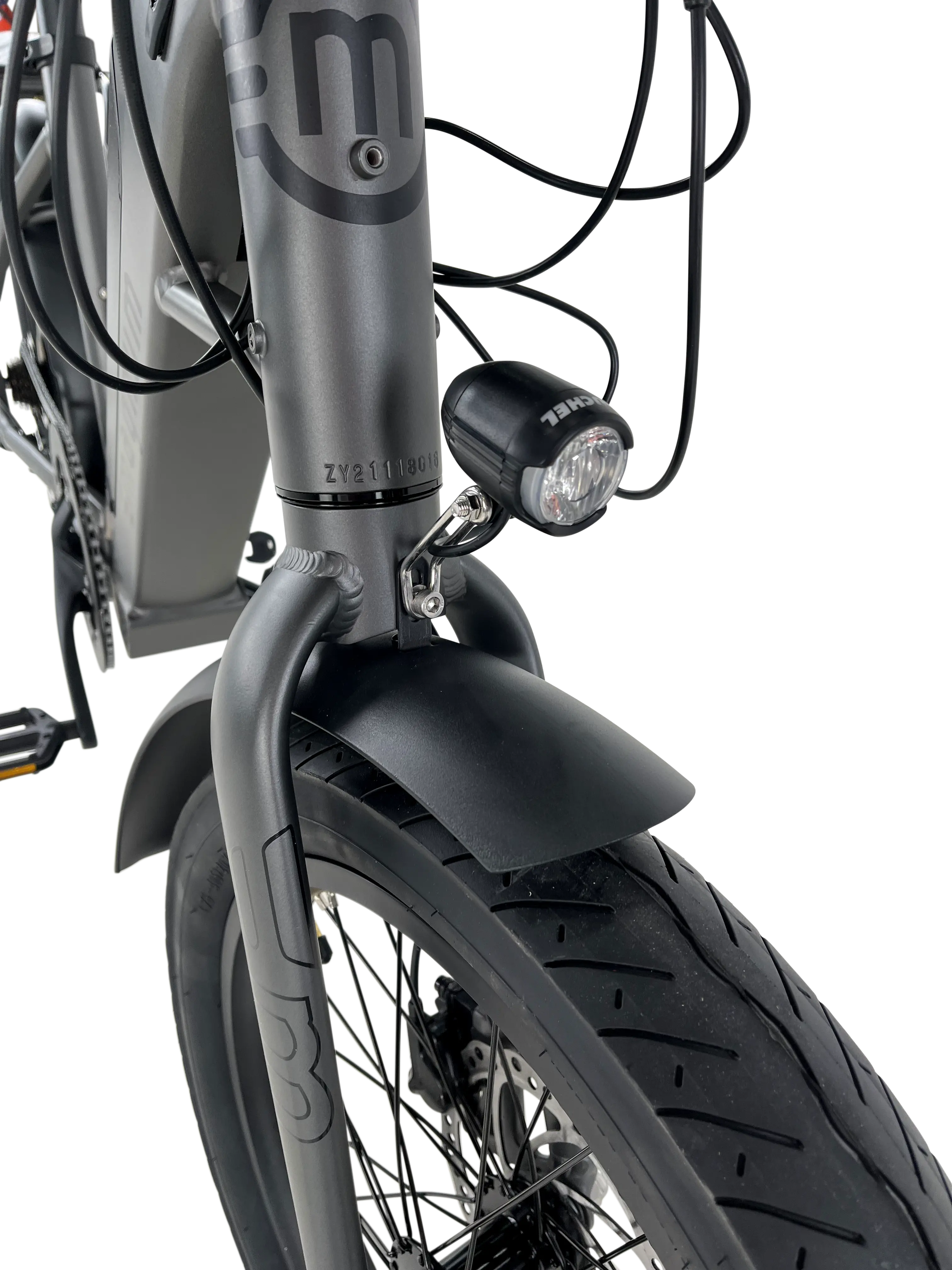

Lights Integrated Front and Rear Light
Bicycle Details
Total Weight 62lbs
Battery Weight 8lbs
Frame Type Low Step
Fork Details Fixed Alloy

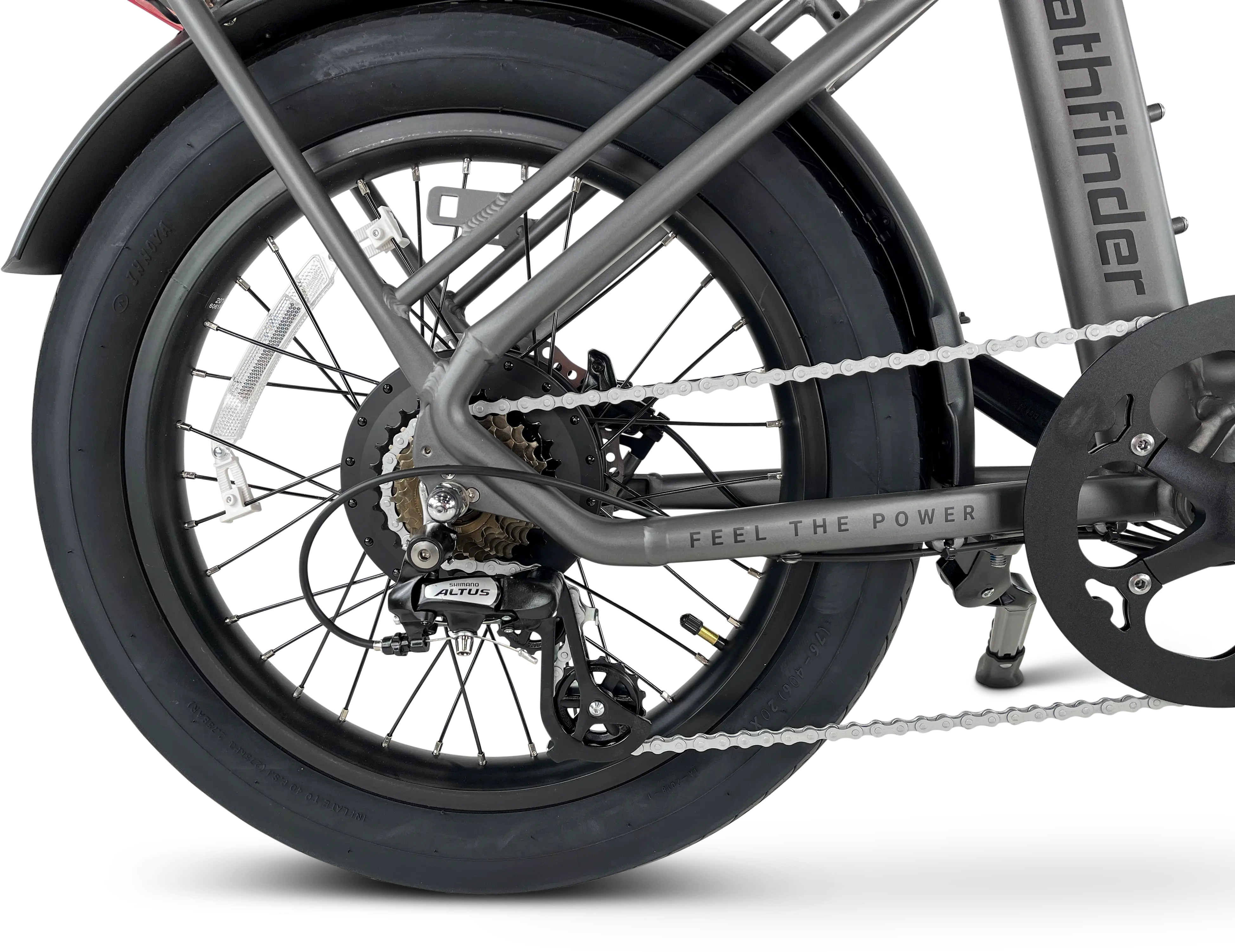

Gearing Details Shimano 7 Speed

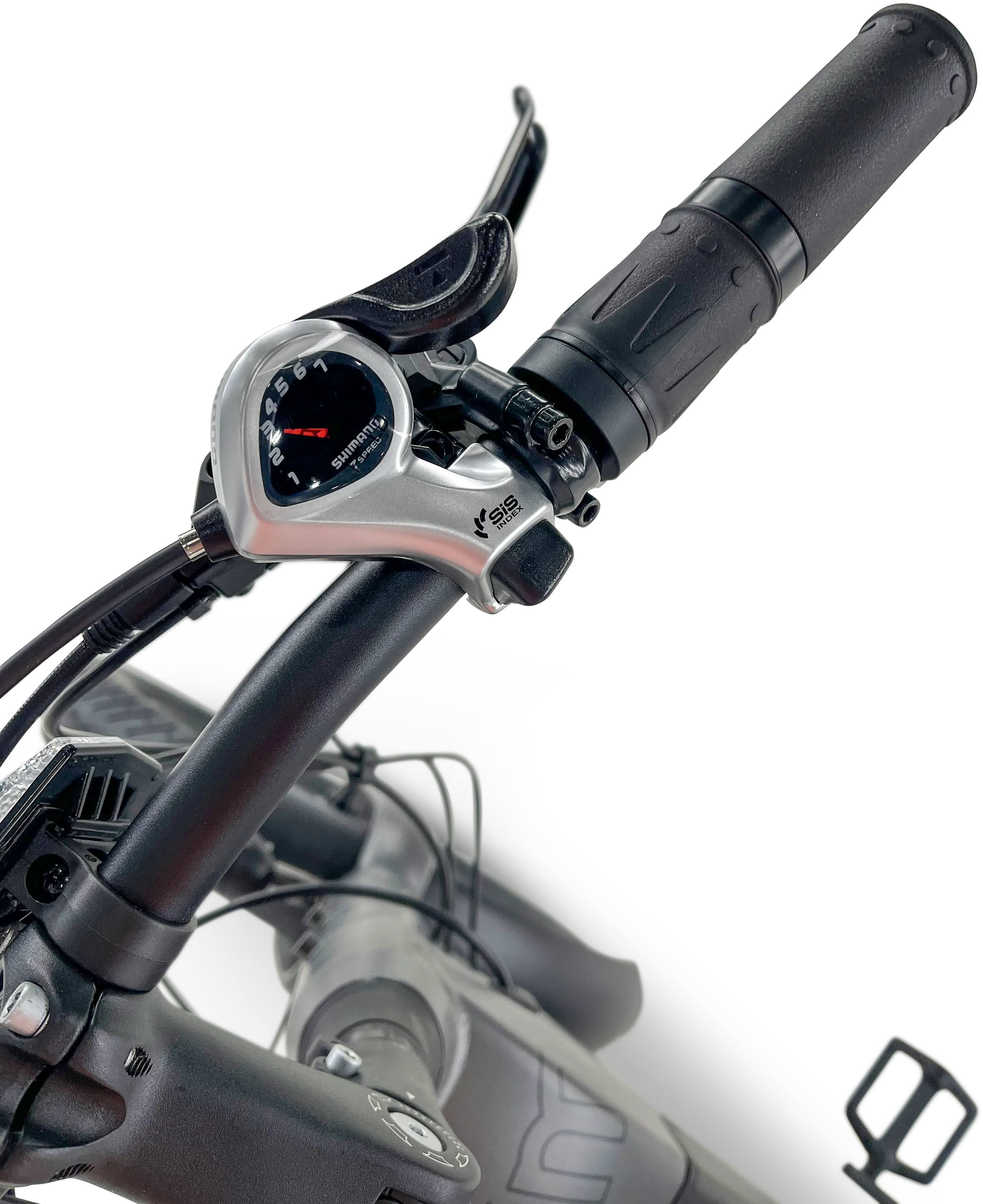

Shifter Details Shimano 7 Speed
Stem Adjustable Alloy
Brake Details Hydraulic Disc Brakes
Saddle VELO Gel Comfort Saddle

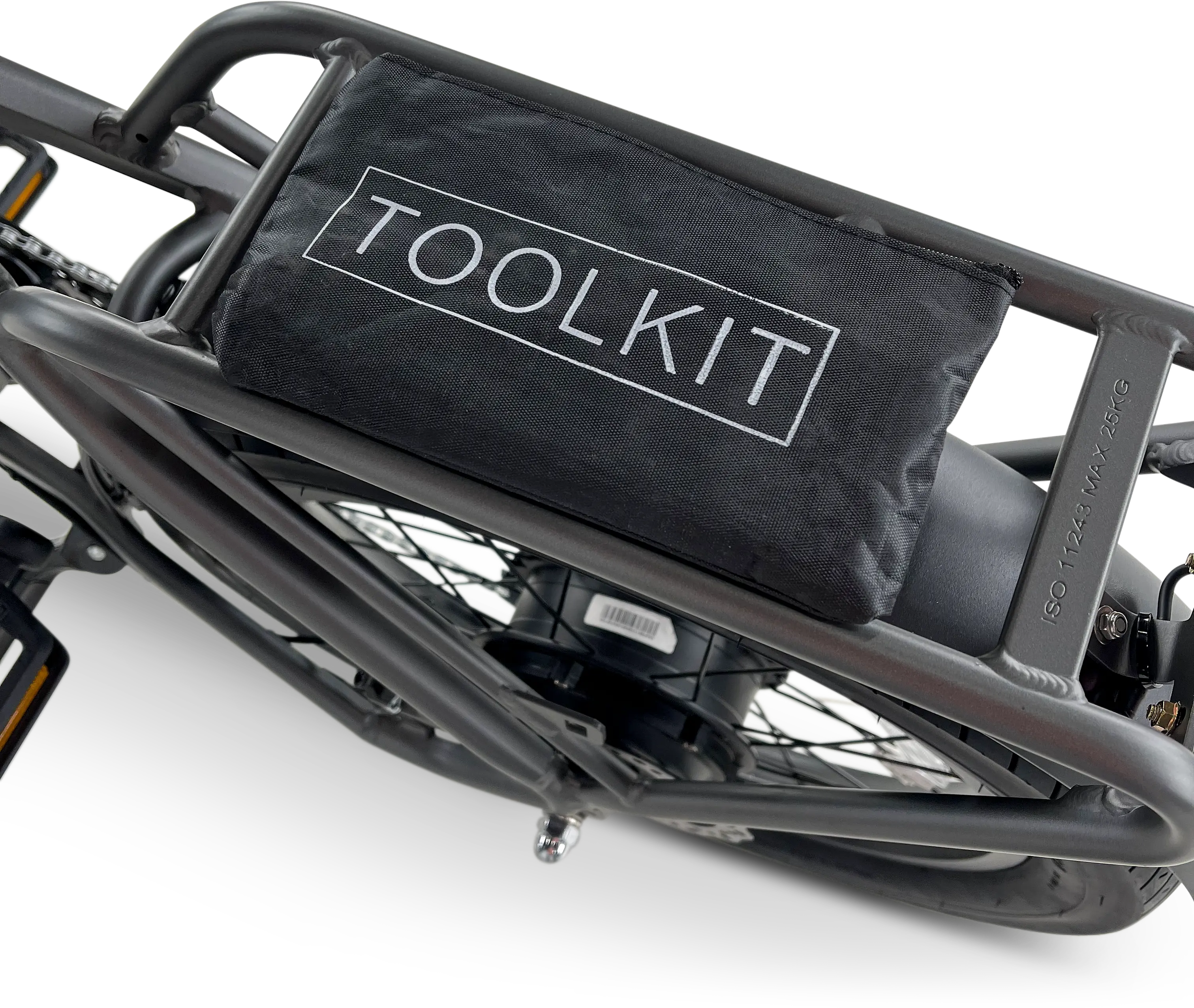

Rack/Fenders Rear Rack, Front and Rear Fenders
Tires CST Big Boat 20" Fat Tire
Wheel Size 20" x 3"
Dimensions
Max Seat Height *Measured from the bottom pedal stroke 29.5"
Min Seat Height *Measured from the bottom pedal stroke 20.5"
Seat Tube 15.75"
Standover Height 16"
Wheelbase 43"

Manufacturer Warranties

  • 1-Year Manufacturer's Warranty
